Features and Benefits

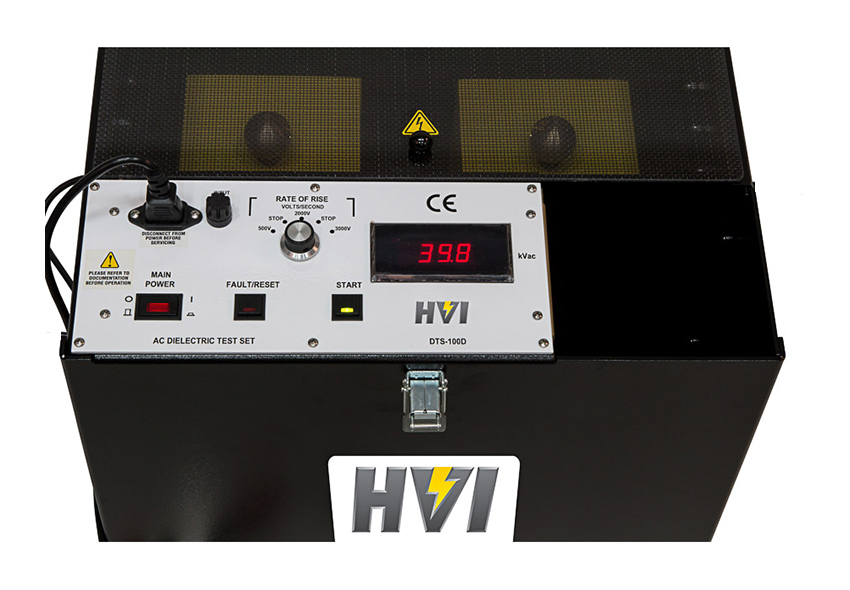

The DTS-100D and DTS-100DF are CE Marked liquid dielectric test sets, typically used for testing the breakdown voltage level of insulating oils, hydraulic oils, and other dielectric fluids per the most common world standards including ASTM D-877, ASTM D1816, and IEC 156. Three user-selectable automatic voltage rates-of-rise, and automatic voltage shutdown with the meter indicating the breakdown voltage of the insulating liquid under test. Its durable aluminum construction, small footprint, a removable oil drip tray and rugged design make our DTS series ideal for field, factory, or laboratory use.

• Three motorized rates of rise: 500V/2000V/3000V per second
• Arc detection with automatic shutdown and failure indicator
• Window panel for test observation
• Accessory outlet located within test chamber
• One-piece portable design
• Zero Start safety and test chamber interlock provision

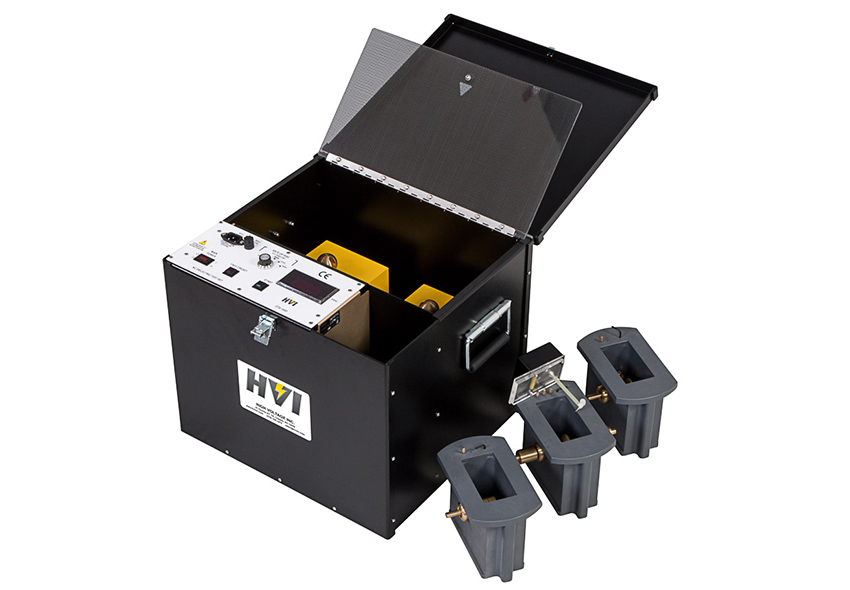

Test Cells

TCD-N3 – For ASTM D877, flat disc electrodes, 625mL sample size, 0.100-inch gap adjustment gauge

TCD-N5 – For ASTM D1816, spherical electrodes, 625mL sample size, 0.100, 0.080, and 0.040-inch gap adjustment gauges, includes motorized stirring assembly

TCD-NI2 – For IEC 156, spherical electrodes, 625mL sample size, 0.100, 0.080, and 0.040-inch gap adjustment gauges

Optional Accessories

PN 32-0391 Reusable Shipping Container
