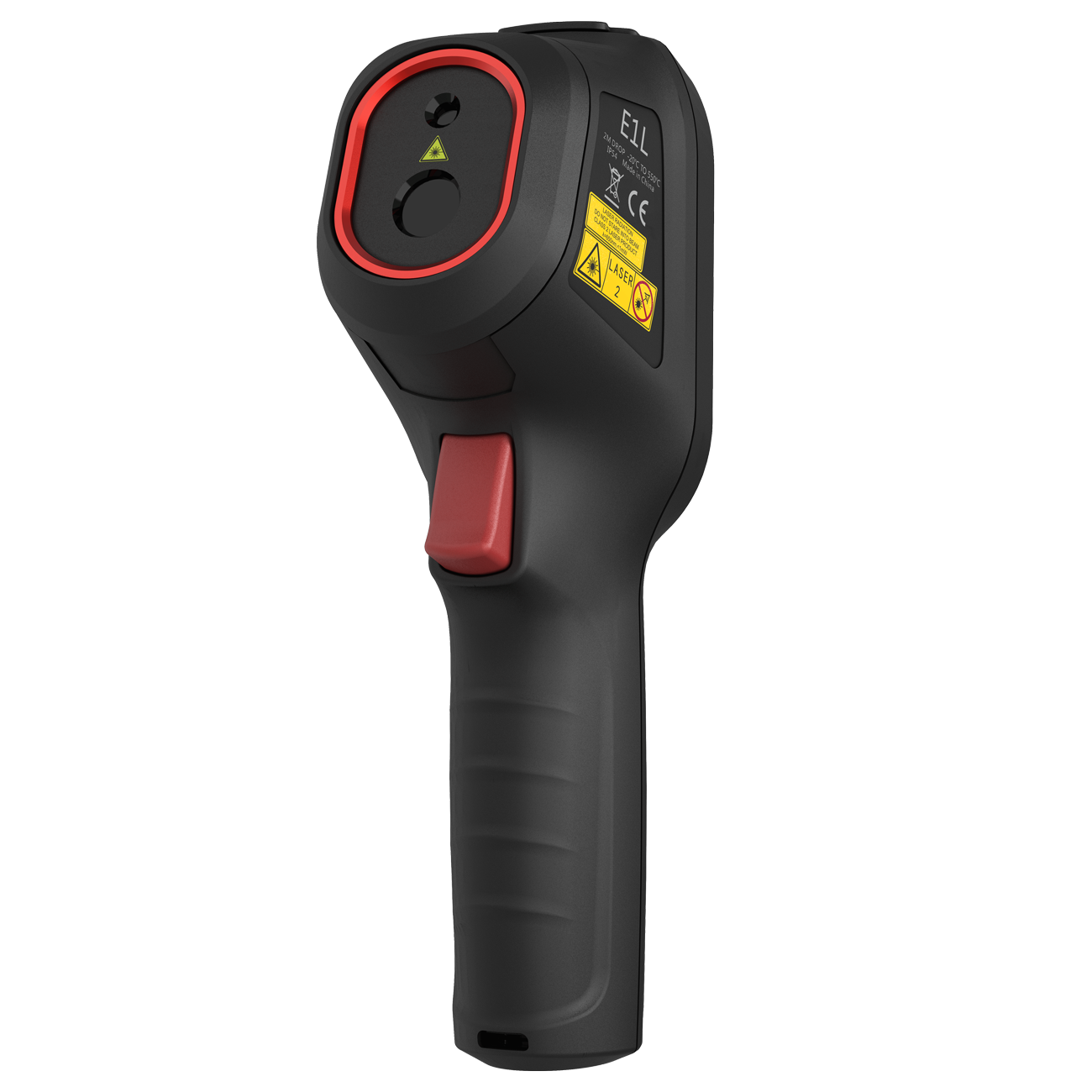

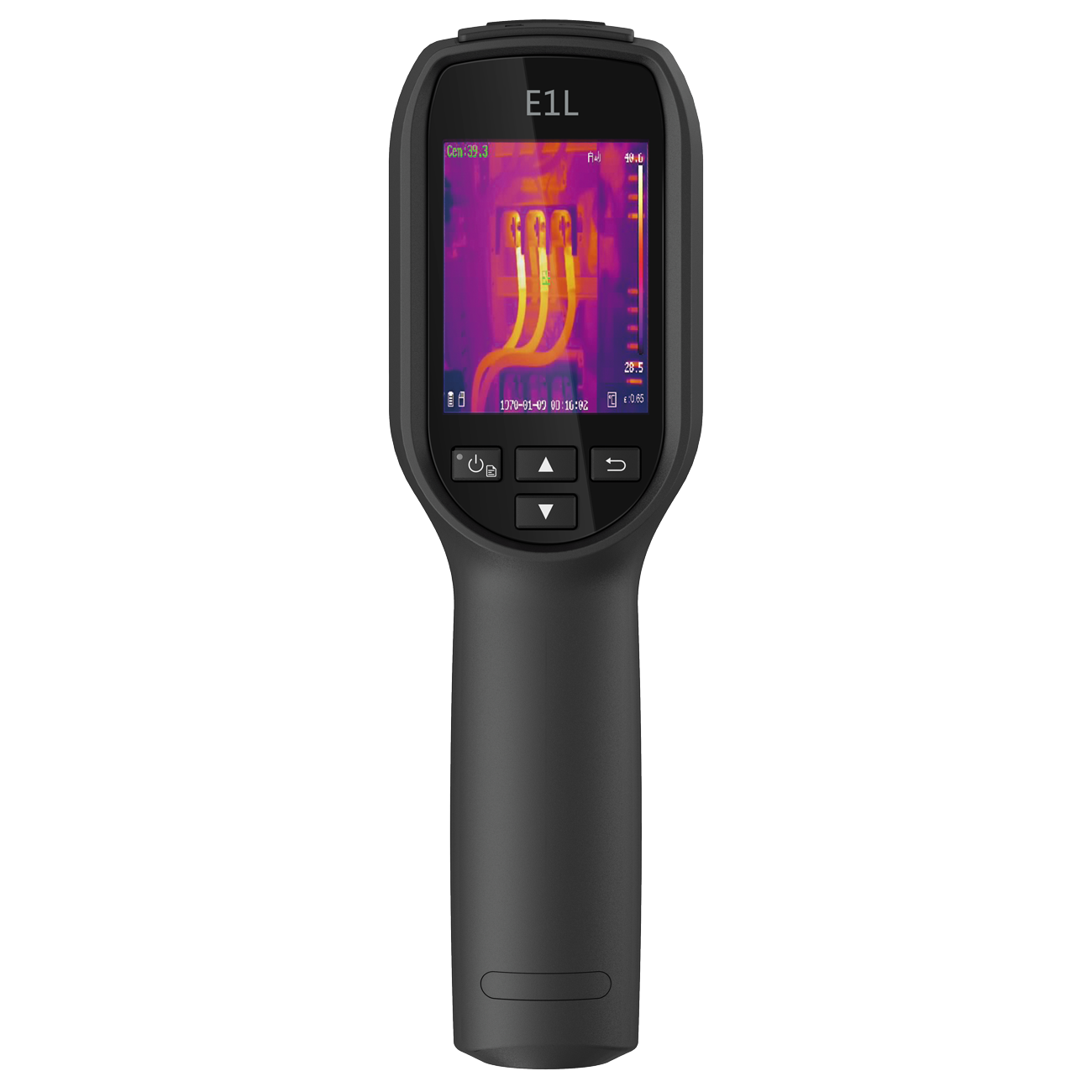

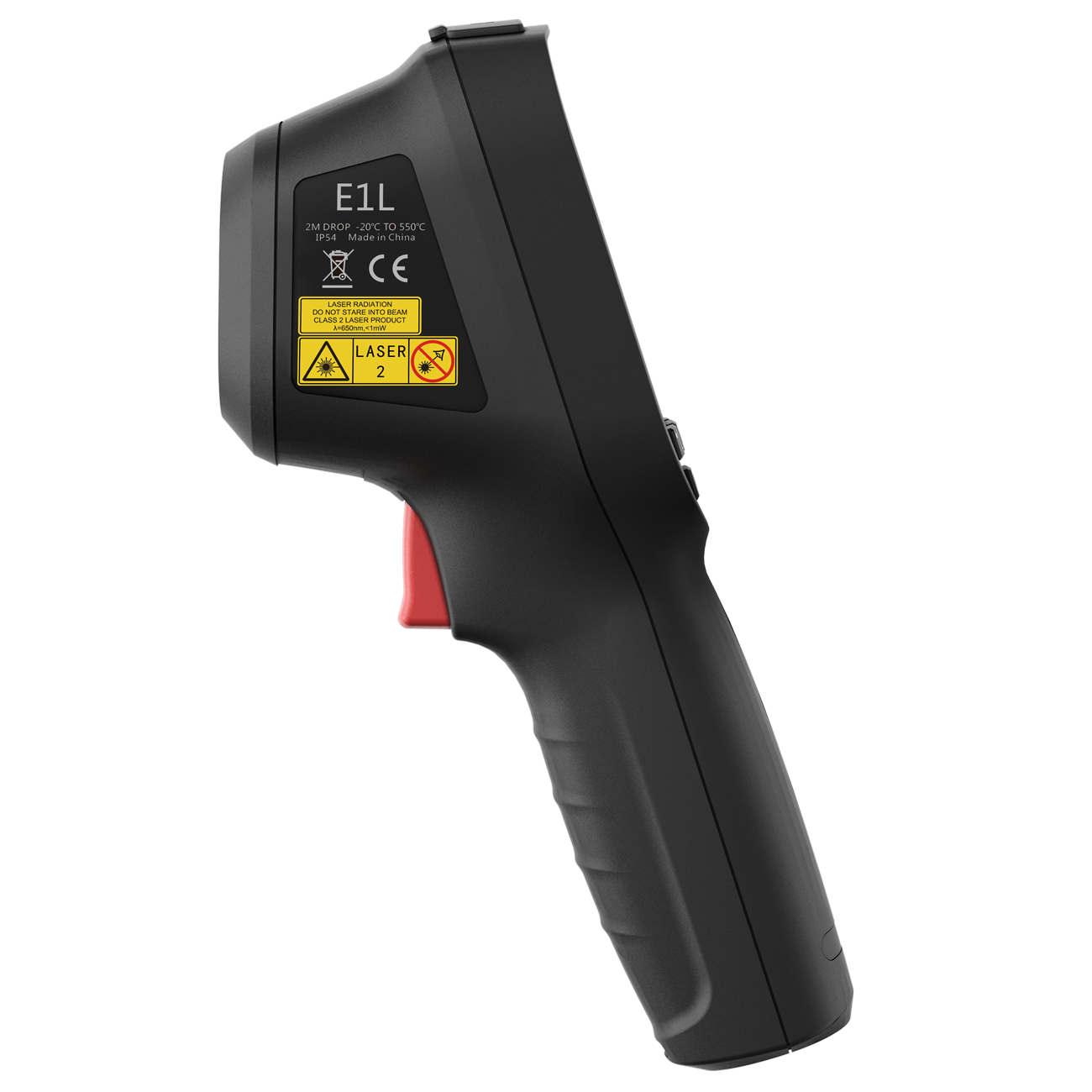

E1L Handheld Thermography Camera

HIKMICRO









Download Catalog

The thermographic handheld camera is based on the thermal technology, specially designed for the needs of temperature measuring applications. People can quickly troubleshoot faults on-site.



Key Features

  •  Thermal resolution: 160 × 120 (19 200 pixels)
  •  NETD : < 40mK (@ 25 °C,F#=1.0)
  •  Temperature measurement range : -20 °C - 550 °C (-4°F~1022°F)
  •  Accuracy: Max (±2°C/3.6°F, ±2%), for ambient temperature 15°C to 35°C (59°F to 95°F) and object temperature above 0°C (32°F)
  •  Measurement presets: Center spot, Hot spot, Cold spot, Off
  •  25 Hz image frequency
  •  Weight: 350g (0.77 lb)
  •  Up to 8 hours continuous running
