Memory HiLogger LR8450
HIOKI
1ms Sampling Portable Logger Expandable to 330 Channels with Your Choice of Plug-in or Wireless Input Modules
Download Catalog Watch VideoHioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance.

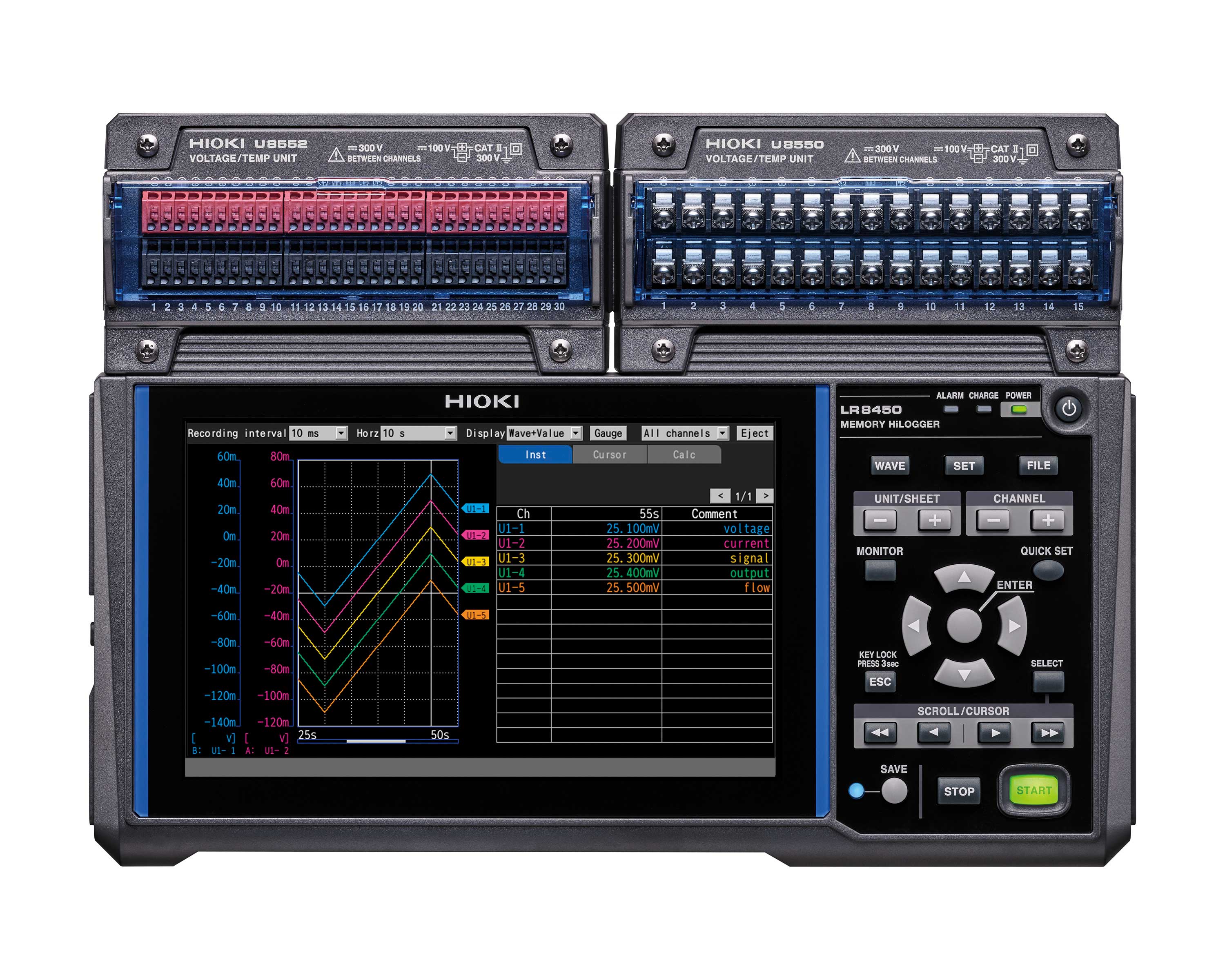

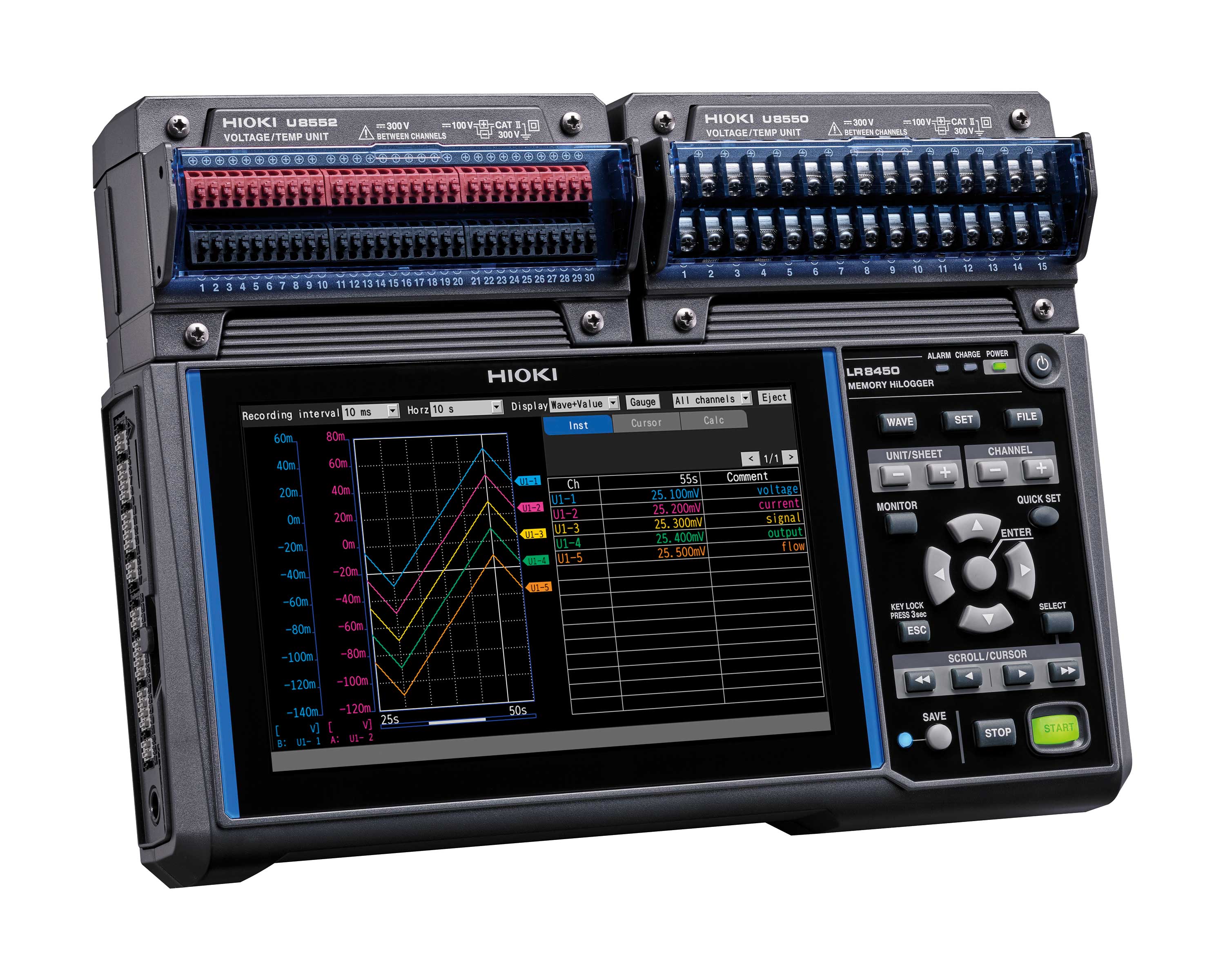

MEMORY HiLOGGER LR8450

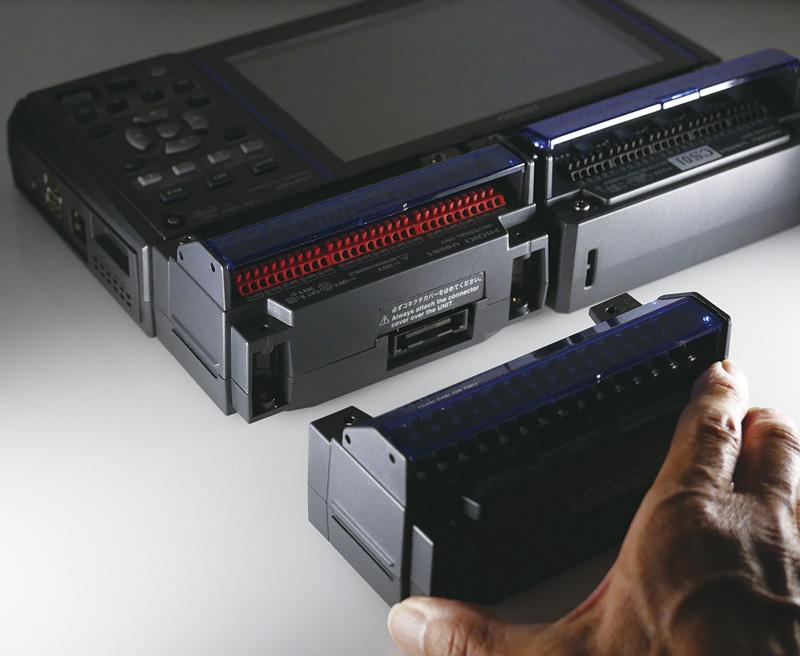

The LR8450 offers 1 ms sampling across up to 120 channels, and can be paired with 5 different types of plug-in input units. New input modules measure strain and distortion, ideal for automotive applications involving the evaluation of vehicle components as well as robotic equipment.
Key Features
• Expandable to 120 ch with wired/plug-in units
• Record voltage output from pressure and other sensors with 1ms sampling speed
• Directly connect strain gauge and measure signals in as fast as 1ms intervals
• Significantly reduced effects from noise let you safely measure in high voltage and high frequency areas such as around inverter motors
MEMORY HiLOGGER LR8450-01 (Wireless LAN model)
The LR8450-01 offers 1ms sampling across up to 330 channels, and can be paired with 10 different types of plug-in or wireless input units. Collect data from wireless modules installed in remote or confined locations via a LAN connection. New input modules measure strain and distortion, ideal for automotive applications involving the evaluation of vehicle components as well as robotic equipment.
Key Features
• Wireless LAN model expandable to 330 ch with wireless and plug-in units • Record voltage output from pressure and other sensors with 1ms sampling speed
• Directly connect strain gauge and measure signals in as fast as 1ms intervals
• Significantly reduced effects from noise let you safely measure in high voltage and high frequency areas such as around inverter motors
• Avoid wiring issues by minimizing cable length using wireless units
• Monitor data captured remotely on PC with wireless LAN technology
