CLEVER DISPENSE 06
MARTIN
Set HC DK
Precise dispensing device with dispensing head, plus optional tempering of cartridges and needles for integration into automation technology.
Download Catalog Watch Video
Top Features
Heating and cooling
-
Automated & manual
Flexibly deployable dispensing heads of various sizes
-
Repeatability
A consistent volume can be dispensed with the volumetric dispensing device, regardless of the viscosity
-
Process reliability
Dispensing pressure, temperature and retract vacuum are configured through the program
-
Tempering
Heating and cooling of media with limited pot life for complicated applications
-
Software
Intuitive software offering use of dispensing recipes and the material library
-

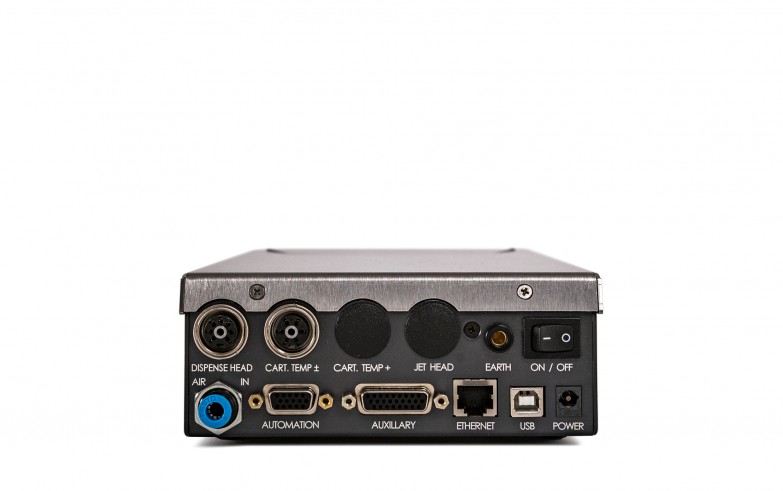

Interfaces
USB, TCP/IP, RS232, Ethernet

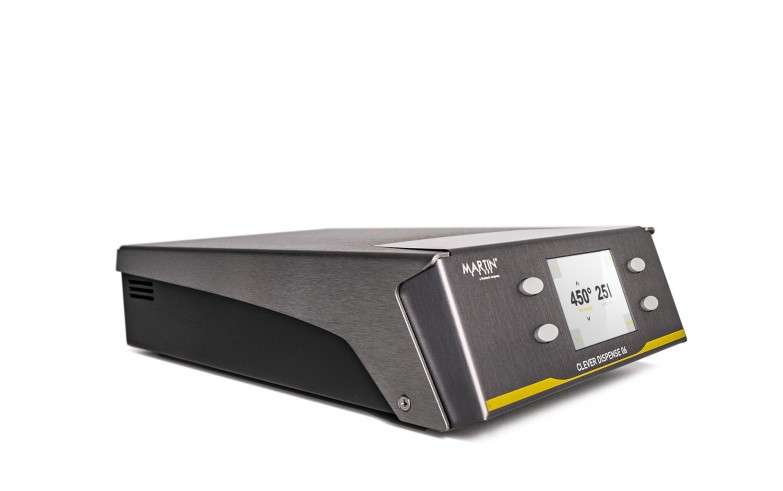

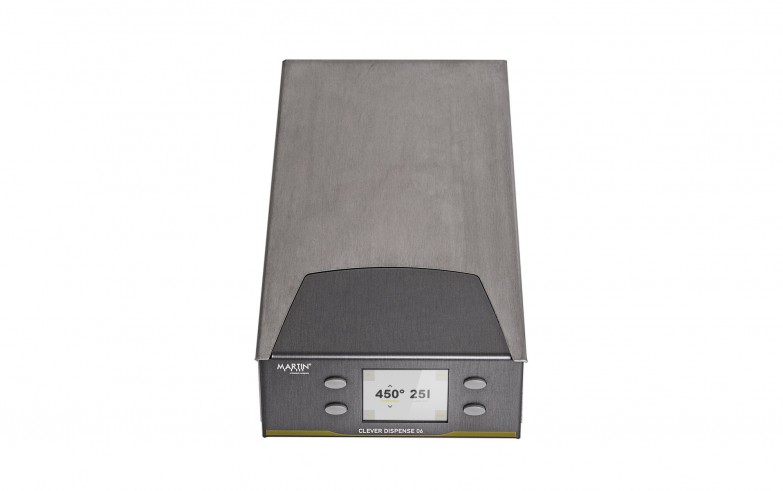

CLEVER DISPENSE 06 HC DK
The CLEVER DISPENSE 06 HC embodies a professional dispenser for applications that require highest accuracy and a maximum control of material temperature and viscosity. This dispenser allows heating and cooling (temperature control) of the dispensing nozzle and cartridge. The all-electronic dispensers whose dispensing pressure, temperature and retract vacuum are program-controlled rely on time-pressure-technology. This allows reliable dispensing of very small dots and lines of liquid to pasty material either as 1K-type or 2K-type. You can add your own material to the already existing material library to define essential material parameter and limit values. To ensure a stable process, this device set includes a tempering module for the nozzle — an integrated feature of the dispensing head. Optionally, a cartridge tempering module can be attached to the CLEVER DISPENSE 06 HC which allows the material temperature to be adjusted and controlled. Furthermore, a USB or TCP/ IP interface is available for communication between the dispensing device and the process control computer.
Standard equipment
- Control unit CLEVER DISPENSE 06 HC
- Dispensing head (size of choice) with integrated nozzle tempering
- Connecting cable of dispensing head (standard 2,6m/ max. 3,0m)
- Pneumatic hose (d=6mm, l=5m)
- Power supply 90-230V AC -> 24V DC
- PC-Software CLEVER DISPENSE Pro
- USB cable
- Short instructio
Materials
- Alcohol
- Silicone
- Thermal conductive adhesives
- Flux
- Solder paste
- Aqueous
- Oil
- Grease
- Underfill
- Adhesive Conductive Paste
Processes
- Glob Top
- Line dispensing
- Dot dispensing
- Microdispensing
- Underfill dispensing
- Adhesive bonding
- Coating
- Cooling of the material
- Tempering of the material
- Preheating of the material
