Circuit Breaker Analyzer & Timer CAT Standard Series

DV Power

Analyzers for circuit breakers with up to 2 breaks per phase.

Download Catalog Watch Video

Circuit breakers are being tested during manufacturing, commissioning or maintenance stages. The most basic test requires timing measurement using circuit breaker timer. Their primary role is timing and motion measurement of medium and high voltage circuit breakers. Devices from CAT Standard series have suitable application in:

  • electric power generation,
  • distribution system,
  • part of the electric power transmission system,
  • contractors testing,
  • and industrial environments.

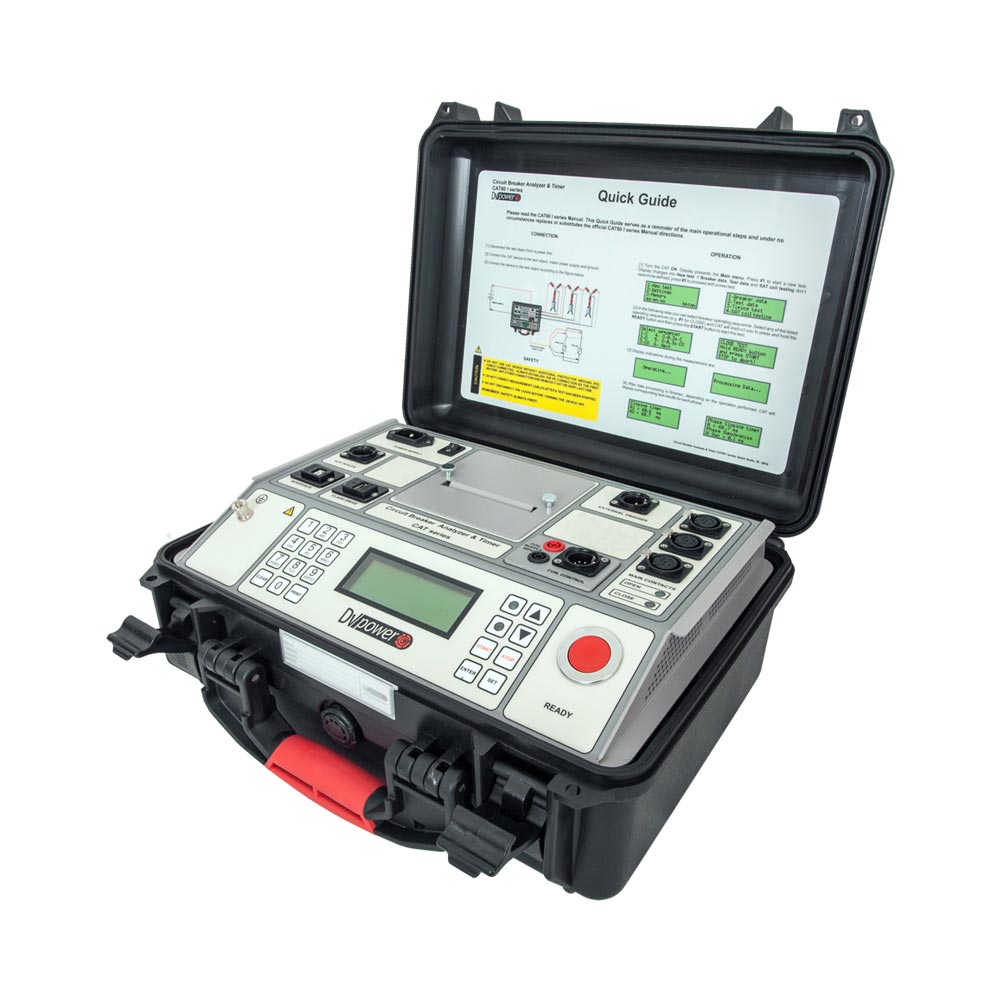

CAT Standard series meets the requirements of an easy to use circuit breaker timer and analyzer with an attractive price. Furthermore, they are portable and lightweight (weighs only up to 7 kg).  Finally, the plastic case is unbreakable and has IP67 protective rating when the lid is closed.

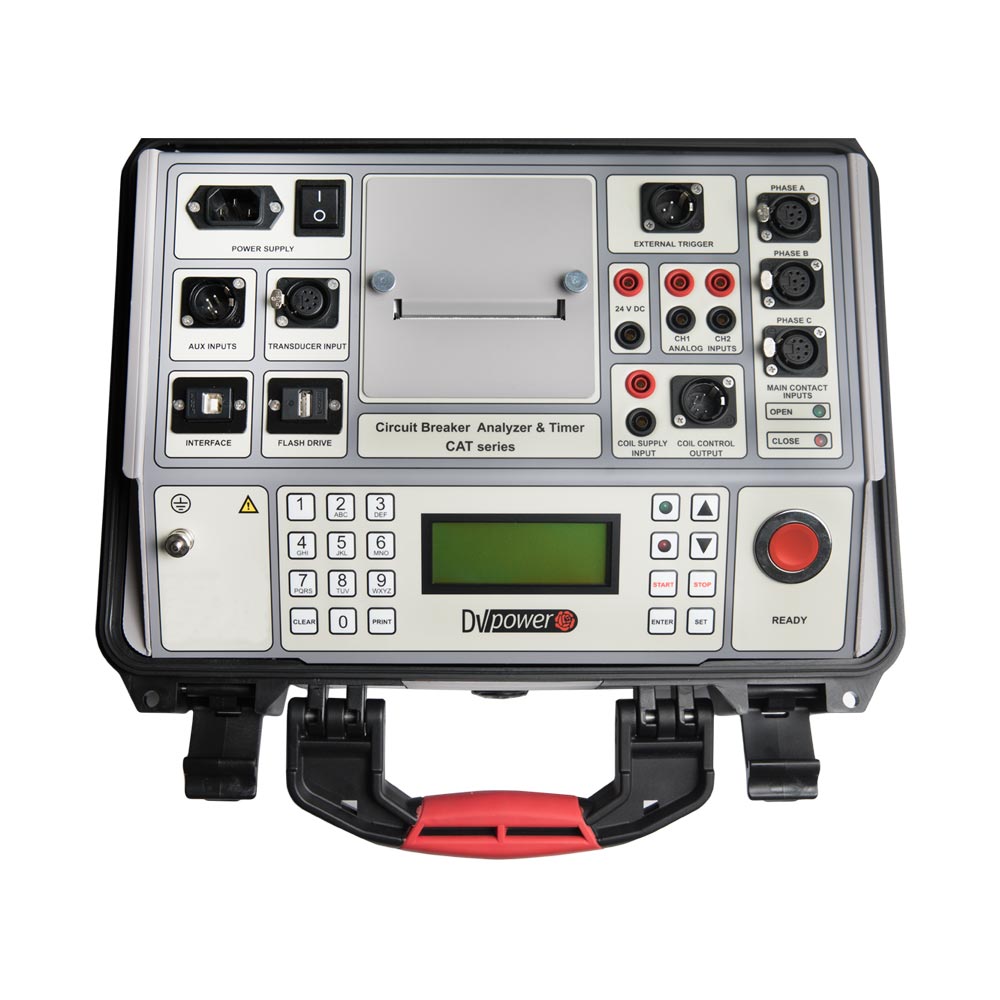

CAT Standard series includes five models:

  • Three circuit breaker timers – CAT03, CAT31, and CAT61
  • Two circuit breaker analyzers – CAT34 and CAT64

CAT03 is a basic model intended only for timing measurement of main contact operations on the circuit breaker with one break per phase. Unlike CAT03, CAT31 has the possibility of circuit breaker operation initiation, coil current measurement, and auxiliary contact timing measurement. CAT61 differs in comparison to CAT31 by its ability to measure up to two breaks per phase.

CAT34 and CAT64 are more advanced compared to CAT31 and CAT61, respectively, since they have additional analog channels. Also, they have the possibility of a travel curve recording.

A user can download the test results to a USB memory stick or save it to internal memory. The CAT Standard series internal memory can store up to 500 test results (numerical and graphical data). Optional thermal printer prints test results in tabular and graphical form on 80 mm (3.15 inch) paper rolls. CAT Standard series instruments are compatible with DV-Win software. It provides full control of all CAT functions from a PC, as well as acquisition and analysis of test results.
