0 – 30 kV AC Power Frequency AC Hipot



Download Catalog Watch Video

Features and Benefits

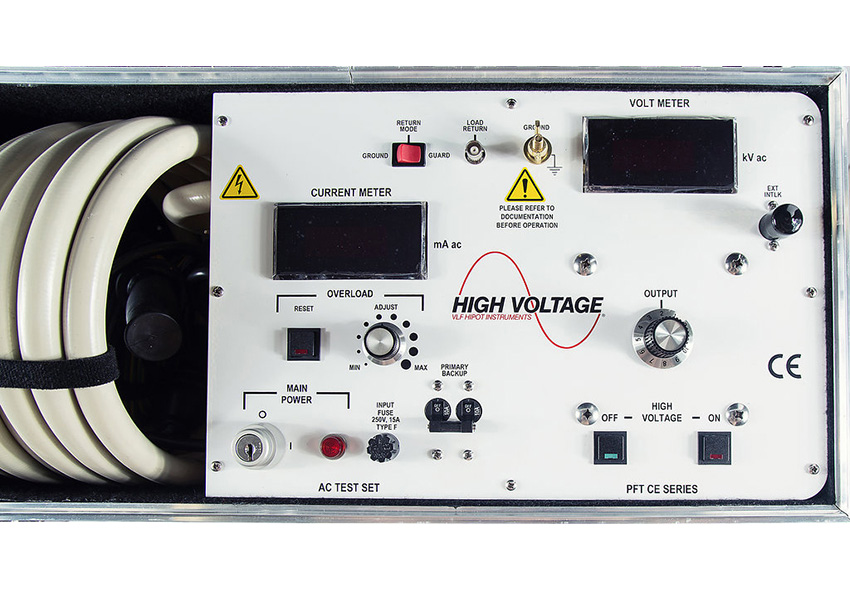

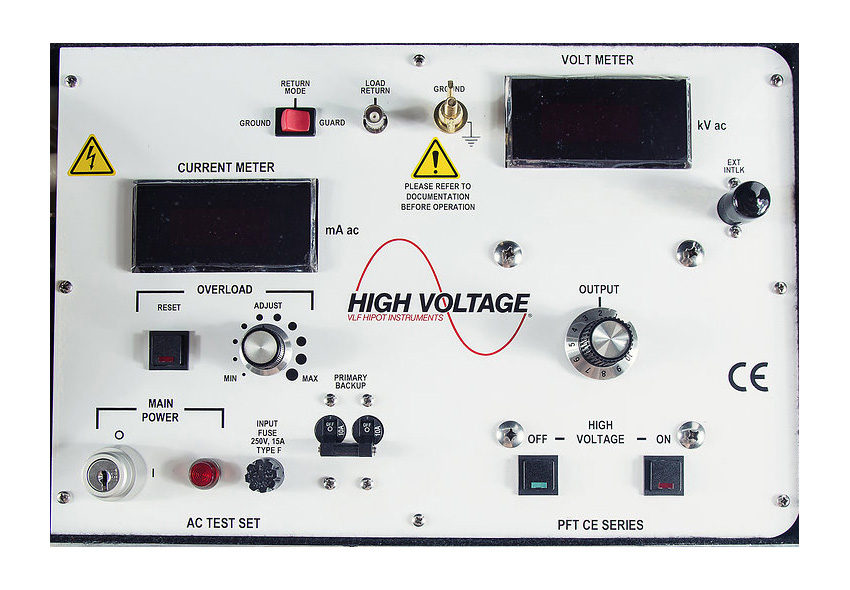

The PFT-302CE is a CE Marked AC hipot test set from our popular PFT Series. These hipots provide continuously adjustable AC voltage used for a pass/fail, AC over-voltage withstand test on high voltage apparatus, like switchgear, circuit breakers, reclosers, vacuum bottles, hot sticks, bus duct, and any other apparatus needing an AC test voltage. The PFT Series offers the most field portable, affordable, and easiest to operate AC hipots at this voltage and power. The PFT-302CE is equipped with high end features such as digital meters, an adjustable overload, keyed main power switch, 20ft shielded output cable and a guard circuit for precise leakage current measurement. For benchtop requirements see the ABT Series. Testing loads that require higher power, see our ALT, FPA, HPA and PAR lines of AC dielectric test sets.

  • Convenient one-piece field portable design
  • Digital voltmeter and current meter
  • CE Marked
  • Adjustable overload, 10 – 110% of rated output current
  • Keyed main power switch
  • Guard/Ground circuit for accurate leakage current measurement
  • 20 ft x-ray shielded output cable and shielded return cable
  • Zero Start and External safety Interlock provisions


Optional Accessories

Hand & Foot Safety Switches

  • PN 90-410
  • PN 90-405

Safety Ground Sticks

  • 14 inch PN 88-150
  • 10 inch PN 88-113
