PTS-80 AND PTS-80F
PTS Series – DC High Voltage Test Set and Megohmmeter





Download Catalog Watch Video

Features and Benefits

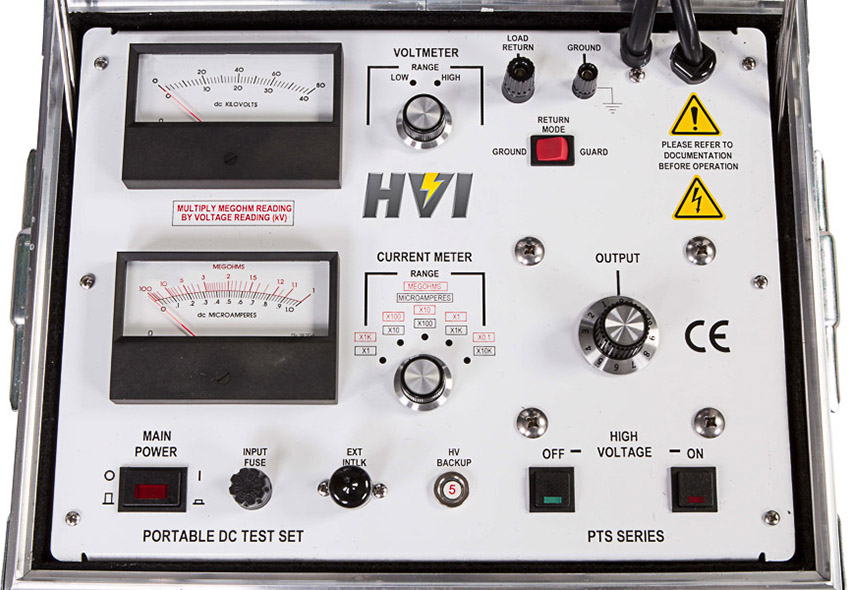

The PTS-80, PTS-80F are combination high voltage DC proof tester and megohmmeter. Dielectric strength and insulation resistance testing are combined into one instrument saving time, money, size and weight. Equipped with a 5-range current meter scaled 0 – 1 dc microamps for accurate current measurement down to a 10 nanoamp resolution in the x1 range. Using the alternate scale on the current meter allows the PTS Series to double as a Megohmmeter up to 8 teraohms, scaled 100-1 megohms, insulation resistance can be taken at any voltage. An accurate 2 range voltmeter rounds out the standard instrumentation. Additional features include ruggedized anti-static and transit protected meters, rugged single piece design with foam padded handles, full-wave bridge rectifier, internal shorting solenoid with discharge resistors, and is CE marked. For other voltage options, please see the rest of our PTS Series which range from 15kV to 600kV DC. See our DBT Series for bench-top options



Features:

  • 20 foot (6 meter) shielded output cable, ground and return leads
  • 5 range current/megohmmeter for accurate leakage current
  • Megohm readings at any output voltage up to 8 teraohms
  • Full-wave bridge rectifier
  • Internal HV Shorting Solenoid with discharge resistors
  • Automatic transit protected meters with Anti-static glass face

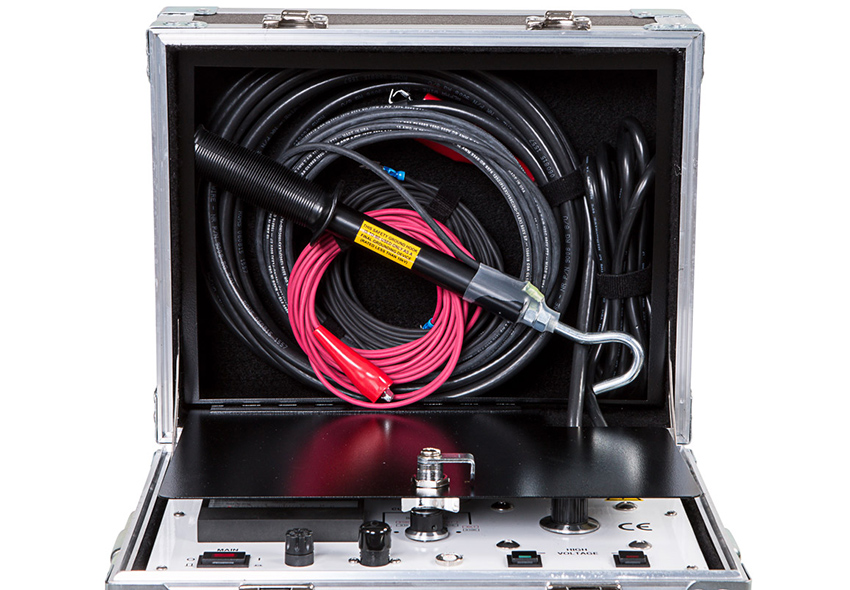

  • Under lid storage for all accessories
  • External safety and zero start interlocks



Optional Accessories

Hand & Foot Safety Switches

  • PN 90-410
  • PN 90-405 P

Safety Ground Sticks

  • PN 88-150
  • PN 88-113 * included

Reuseable Shipping Case

  • PN 32-039



Optional Upgrades

  • 3.5 Digit Digital Meters – Add Suffix “D”
