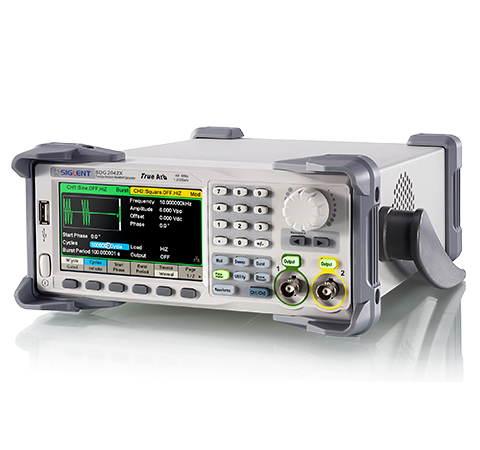

SDG2000X Series Function/Arbitrary Waveform Generators
Siglent Technologies Co.
Main Features
- Dual output channels
- Maximum 120 MHz output frequency
- 1.2 GSa/s Sampling rate, 16 bit vertical resolution
- TrueArb technology, Arbitrary wave length 8 – 8 Mpts
- Low jitter square and pulse wave
- Pulse width and rise/fall time finely adjustable
Excellent Channel Performance
SDG2000X features high performance dual-channel and high signal fidelity
· Maximum output frequency 120 MHz
· High amplitude output at high frequencies. 20 V signal output capability at 20 MHz
· Extremely low noise floor, high signal to noise ratio
· Maximum output frequency 120 MHz
· High amplitude output at high frequencies. 20 V signal output capability at 20 MHz
· Extremely low noise floor, high signal to noise ratio
Innovative EasyPulse Technology
With traditional DDS technology, there will be a jitter of one sampling period when sampling rate and output frequency are not integer multiple. With EasyPulse technology, this can be solved perfectly. In addition to output low jitter Square and Pulse signals, EasyPulse tech has advantages of:
· Pulse frequency up to 25 MHz
· The rise and fall time can be set separately, fastest 8.4 ns
· Pulse width finely adjustable, down to 16.3 ns
· Duty cycle as low as 0.001%
· Low jitter
· Pulse frequency up to 25 MHz
· The rise and fall time can be set separately, fastest 8.4 ns
· Pulse width finely adjustable, down to 16.3 ns
· Duty cycle as low as 0.001%
· Low jitter
TrueArb Technology
TrueArb technology has advantages of low jitter and low distortion over traditional DDS technology. TrueArb technology features by output arbitrary waveforms point by point. It will not leak any waveform info and has other advantages:
· 8 Mpts arbitrary waveform length, keep more details
· 16 bit vertical resolution, higher signal fidelity
· Generate and output arb wave per customer request with standard PC software EasyWave
· 8 Mpts arbitrary waveform length, keep more details
· 16 bit vertical resolution, higher signal fidelity
· Generate and output arb wave per customer request with standard PC software EasyWave
Complex Signal Generation Capability
The SDG2000X can perform various kinds of modulations, sweeps, burst and signal synthesis. It supports internal, external and manual trigger sources.
· Support AM, FM, PM, FSK, ASK, PSK, DSB-AM and PWM modulations
· Support linear and logarithmic sweeps.
· Support "N cycle" and "Gate" burst mode
· Support output combined waveforms of two channels. Combine signals with noise, modulated signal, sweep, burst and arbitrary waveform
· Harmonic function can simulate the synthesis process of signals
· Support AM, FM, PM, FSK, ASK, PSK, DSB-AM and PWM modulations
· Support linear and logarithmic sweeps.
· Support "N cycle" and "Gate" burst mode
· Support output combined waveforms of two channels. Combine signals with noise, modulated signal, sweep, burst and arbitrary waveform
· Harmonic function can simulate the synthesis process of signals
Specifications
| Bandwidth | 40 MHz，80 MHz，120 MHz |
| Sample Rate | 1.2 GSa/s（4X Interpolation） |
| Channels | 2 |
| Arbitrary Waveform Length | 8 pts ~ 8 Mpts |
| Square Frequency | 1 μHz ~ 25 MHz |
| Pulse Frequency | 1 μHz ~ 25 MHz |
| Vertical Resolution | 16 bit |
| Max.amplitude | ±10 V |
| Display | 4.3 inch touch screen, 480 x 272 x RGB |

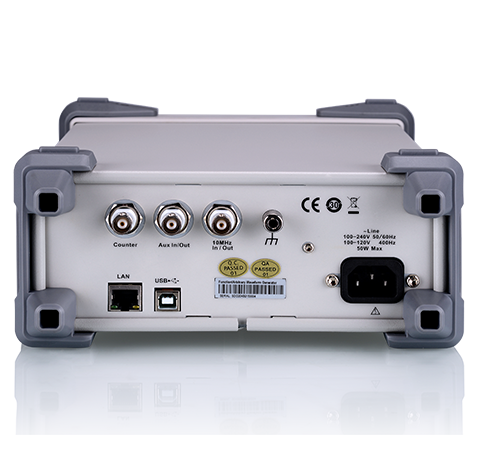

| Interface | Standard : USB Host, USB Device, LAN Option : GPIB (USB-GPIB adapter ) |
| Modulation | AM、 FM、PM、FSK、ASK、PSK、DSB-AM、PWM |
| Built-in Frequency Meter | Support |
