SDL1000X/X-E series Programmable DC Electronic Load
Siglent Technologies Co.
Main Features
- DC 150 V/30 A, maximum total power 300 W/200 W
- Adjustable current rise/fall rate 0.001 A/μs~2.5 A/μs
- Four static/dynamic modes: CC/CV/CP/CR
- Readback resolution 0.1 mV, 0.1 mA
Excellent Dynamic Characteristics, Can Simulate High-speed Current Changes
The dynamic test function allows the load to switch between the two set parameters according to the set rules, thereby testing the dynamic characteristics of the device under test. The SDL1000X can be set to a maximum frequency of 25 kHz in CC dynamic mode. The current probe can track current changes at high speed and analyze current waveforms. In CV mode, the voltage can be quickly and stably set to test the fast output capability of the power supply. If the instantaneous power exceeds the protection set value, it will enter the hiccup protection state.
Support 50-step Automatic Programming Test
The Program function can simulate multiple tests such as CC, CV, CR, CP, LED, etc. A total of 10 test files can be edited, and each test file supports up to 50 steps.
Support 100-step List Test
The List function supports load-built multi-step, timed, and test environments with different load states. By editing the step values, pulse widths, and slopes of a single step, the load can generate a variety of complex sequence combinations to meet different test needs.
CR-LED Test Function
Based on the traditional CR mode, the SDL1000X adds the turn-on voltage setting of the diode, which can simulate the working state of the real diode and measure the chopping current during the LED test.
Battery Test Function
The battery test function can effectively reflect the reliability and remaining life of the battery. The battery was subjected to a discharge test by setting termination conditions such as termination voltage, discharge capacity, and discharge time using CC, CP, and CR modes.
Specifications
Output | SDL1020X/X-E(Single channel):DC 150 V / 30 A,total power 200 W SDL1030X/X-E(Single channel ):DC 150 V / 30 A,total power 300 W |
4 Modes | CC/CV/CR/CP |
CC Dynamic mode | Continuous, pulsed, toggled |
Frequency(Max.) | CC Dynamic mode: 25 kHz CP Dynamic mode:12.5 kHz CV Dynamic mode:0.5 Hz |
Current Rise Time Range | 0.001 A/μs~2.5 A/μs |
Readback Resolution | SDL1000X:0.1 mV,0.1 mA SDL1000X-E:1 mV,1 mA |
Protection Mode | OCP, OVP, OPP, OTP and LRV protection |
Other Function | List operation function,Auto-test,Battery discharge function,OCPT/OPPT mode,External analog control |

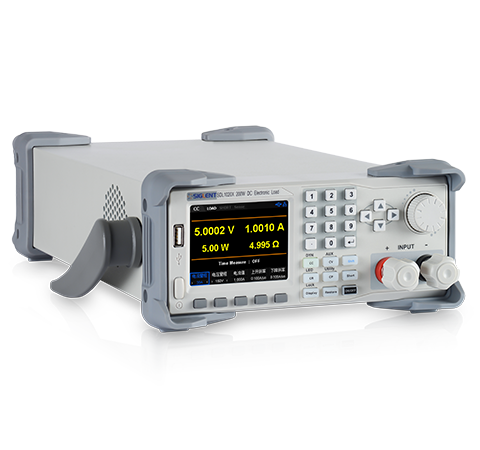

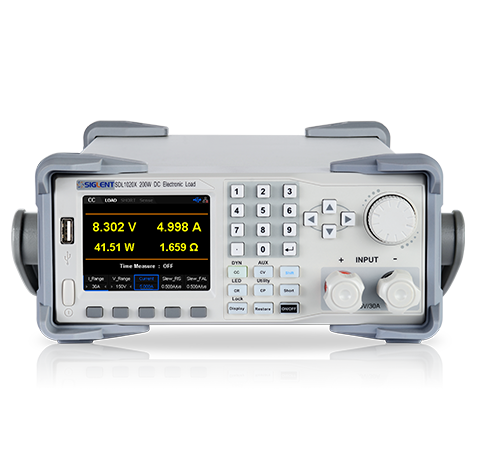

Display | 3.5 inch TFT-LCD display, capable of displaying multiple parameters and states simultaneously |

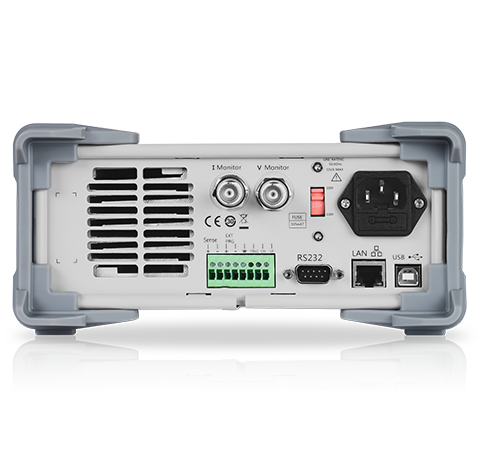

Interface | Built-in RS232/USB/LAN communication interface, USBGPIB module (optional) |
