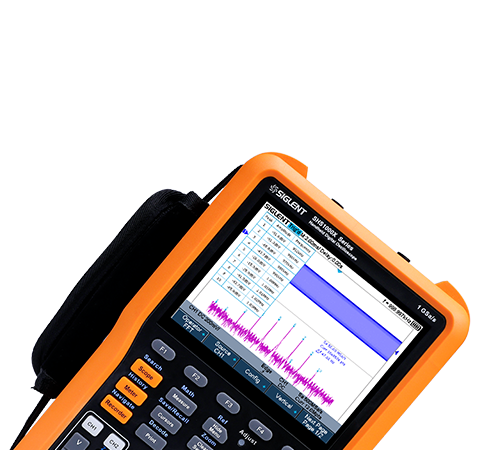

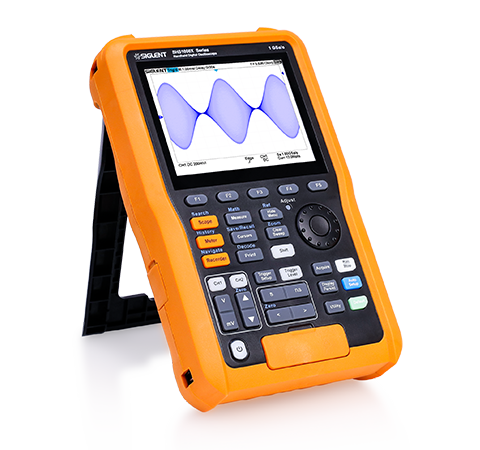

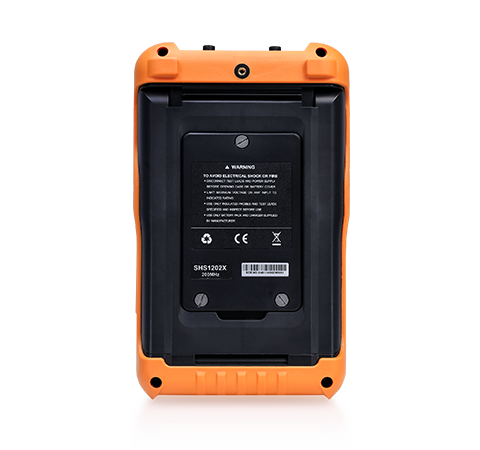

SHS1000X Handheld Oscilloscope

Siglent Technologies Co.

Main Features

  • Isolation voltage:CATIII 600 Vrms, CATII 1000 Vrms
  • Integrate oscilloscope, serial trigger and decoder, spectrum analysis, data logger and multimeter functions into a convenient and portable design
  • 100 MHz or 200 MHz bandwidth models
  • sample rate of 1 GSa/s (single-channel), sample rate of 500 MSa/s (two-channels)
  • record length up to 12 Mpts.
  • Hardware-based ture RMS multimeter
  • IP51 certified

Download Catalog Watch Video
Full Isolation
IEC61010-2-030 defines measurement categories that rate the ability of measuring instruments to withstand short-term transient overvoltages outside the operating voltage.
For SHS1000X series, the max voltage input to the analog scope inputs is CATIII 600 Vrms, CATII 1000 Vrms, and the max input for the multimeter is CATIII 600 Vrms, CATII 1000 Vrms.
SHS1000X series features full isolation between the two oscilloscope channels, one multimeter channel, power adapter and the USB host/device port. The full isolation makes it ideal for both laboratory and floating signal measurement because it reduces the risk of accidental short circuits.


Standard Serial trigger and decode
Standard Serial trigger and decode: IIC, SPI, UART, CAN, LIN, widely used in automotive and embedded industries. Because of its unique portable design and battery power supply, it can better meet the testing needs of the automotive and embedded industries that require on-site decoding.

Hardware-based True RMS multimeter
Integrated 6000 count (~ 3.5 digit) digital multimeter
Hardware-Based True RMS Measurement
Features up to 4-channel measurement value trend graphing that can store 3.5 M measurement points


IP51 certified
The handheld oscilloscopes feature a sealed IP51 dust and drip-proof housing and has been tested to IEC60529 to guarantee the ruggedness that is needed to survive harsh environments. A rubberized surface with large keys also makes it easy to use in difficult environments.



Specifications
  Scope Specification
  SHS1102X SHS1202X
  100 MHz 200 MHz
Sample rate (Max.) Two-channel share a single 1 GSa/s ADC. When two channels are enabled, each channel has a maximum sample rate of 500 MSa/s. When a single channel is active, that channel has a sample rate of 1 GSa/s
Channels 2 analog oscilloscope channels, 1 multimeter channel
Memory depth (Max.) 6 Mpts/CH (dual-channel mode),12 Mpts/CH (single channel mode)
Waveform capture rate (Max.) 100,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)
Trigger type Edge, Slope, Pulse Width, Window, Runt, Interval, Dropout, Pattern, Video
Serial Trigger and decoder IIC, SPI, UART, CAN, LIN

Data Logger(Recorder)
Sample Logger. The Max sample rate is 25 kSa/s, the Min sample rate is 1 Sa/s
Measurement Logger. The Max interval is 10 minutes, the Min interval is 0.1second. The Max items of logging is 4
I/O USB Host, USB Device

Max input Voltage (Scope)
CAT III 600 Vrms, CAT II 1000 Vrms Between BNC Signal and Protecting Earth
CAT III 600 Vrms, CAT II 1000 Vrms Between BNC GND and Protecting Earth
CAT III 300 Vrms Between BNC Signal and BNC GND
Max input Voltage (Meter) CAT III 600 Vrms, CAT II 1000 Vrms
Probe PB925
  Multimeter Specification
Maximum Resolution 6000
DC Voltage 60 mV
600 mV-600 V
±1%±15 digit
±1%±5 digit
AC Voltage(45 Hz~400 Hz) 60 mV-750 V ±1.5%±15 digit
DC Current 60 mA-600 mA
6 A-10 A
±1.5%±5 digit
±2%±5 digit
AC Current (45 Hz~400 Hz) 60 mA
600 mA
6 A-10 A
±1.5%±5 digit
±2%±5 digit
±3%±5 digit
Capacitance 40 nF
400 nF-400 μF
±3%±10 digit
±4%±5 digit)
Resistance 600 Ω-6 MΩ
60 MΩ
±1%±5 digit
±3%±5 digit
Continuity Continuous beep when resistance < 50 Ω
Diode 0~2 V

  Other Specification
Display 5.6-inch TFT-LCD (640x480)
Power Supply Rechargeable 6900 mA high-capacity lithium battery
Weight Without package 1.75 kg. With package 3.5 kg
Domesion 276 mm * 168 mm * 68 mm
Accessories Two Passive Probes,Multimeter pen,USB data cable,DC adapter,Power cord
