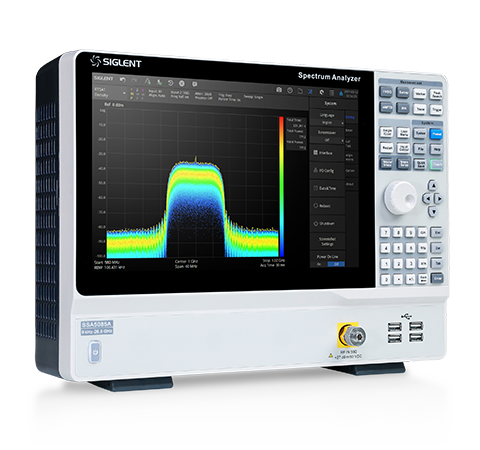

SSA5000A Series Spectrum Analyzer
Siglent Technologies Co.
Main Features
- Frequency Range from 9 kHz up to 13.6 /26.5 GHz
- -165 dBm/Hz Displayed Average Noise Level (Typ.)
- -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
- 25 MHz/40 MHz Analysis Bandwidth
- Analog Modulation Analysis and Vector Digital Modulation Analysis
- Channel power, ACPR, OBW, Harmonic, TOI measurement etc
Bluetooth Analysis
The measurement application follows the Bluetooth® RF test specification issued by Bluetooth SIG to calculate the measurement results, and automatically detects the protocol version of the signal for Bluetooth BR/EDR/LE with one-click measurements to help you design, evaluate and manufacture Bluetooth devices with confidence. Together with the new SigIQPro signal generation software and a SSG5000X-V generator, it forms an economical and efficient SIGLENT Bluetooth signal generation and signal analysis solution, accelerating the process from signal generation to data to evaluation.
.png)
Noise Figure Measurement
The noise figure measurement function of SIGLENT SSA5000A provides engineers with a simple tool, which can quickly and effectively measure the noise figure with high accuracy. Engineers can characterize noise figure and gain of connectorized devices and system blocks with graph, meter, and table layouts, and support the measurement of noise factor, Y-factor, effective temperature, and hot/cold power density.
.png)
Phase Noise Measurement
Siglent's SSA5000A Spectrum analyzers now provide a one-button phase noise measurement. The SSA5000A features lower Display Average Noise Level (DANL) and phase noise ensuring the accuracy of your tests. The smaller resolution bandwidth avoids measuring both carrier power and noise power together, and the measurement results are automatically calculated and graphed.
.png)
Pulse Measurement
Siglent's SSA5000A Pulse Measurement option can help engineers better analyze today's dynamic signal environments with automatic power level, pulse characteristic, and conversion characteristic measurements. With high resolution bandwidth up to 10MHz the rise time measurement result can be as low as 66ns, making accurate measurements on a wide range of pulse types with a variety of triggering methods to cleanly capture the pulse shape.
.png)
Real Time Analysis Mode
The SSA5000A series has real-time spectrum analysis capability. The analyzer can provide multi-dimensions data displays, advanced triggering to solve modern RF spectrum challenges, like channel power measurement, hopping frequency, conflict channel, spectrum interference.

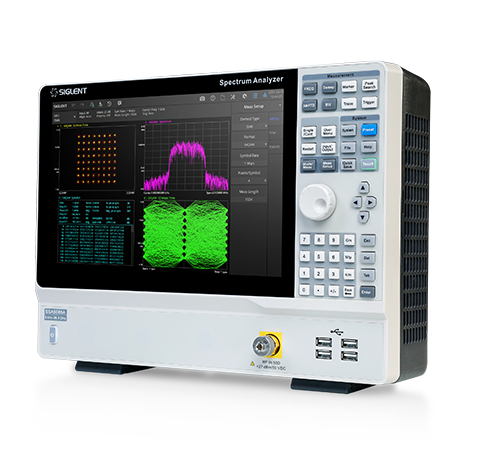

Modulation Analysis Mode
AM/FM/PM analog modulation, and ASK/FSK/PSK/MSK/QAM vector modulation analysis are useful in transceiver testing. With measurement of EVM, constellation and eye-diagram display, there are plenty of methods to evaluate communication quality.
Specifications
| Frequency Range | SSA5083A：9 kHz~13.6 GHz SSA5085A：9 kHz~26.5 GHz |
| Resolution Bandwidth | 1 Hz~10 MHz |
| Displayed Average Noise Level | -165 dBm/Hz |
| SSB Phase Noise | -105 dBc/Hz |
| Analysis Bandwidth | 40 MHz |
| Frequency resolution | 1 Hz |
| Advanced Measurement (opt.) | CHP， ACPR， OBW， CNR， Harmonic， TOI， Monitor |
| Modulation Analysis (opt.) | AM， FM， ASK， FSK， MSK， PSK， QAM |

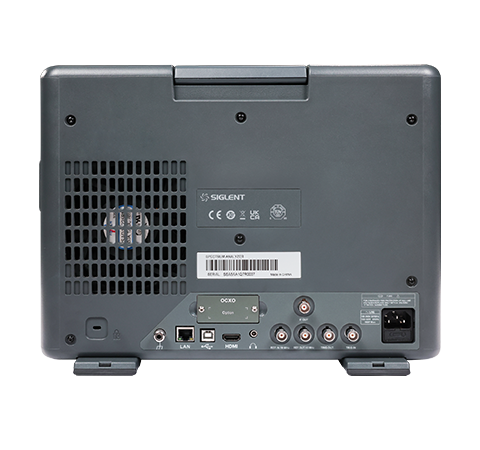

| Communication Interface | LAN， USB Device， USB Host(USB-GPIB) |
| Remote Control Capability | SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet/I-MAX， Web Browser， Easy Spectrum software， File Explorer |
| Display | TFT LCD, 1200 ×800, 12.1 inch capacitive multi-touch screen |
