Six-in-one: ACW/DCW/IR/GB/LC/PW;

| Legal: Meet the safety test requirements of GB9706/IEC60601. Medical electrical equipment;

| Convenience: automatic programming, multi-network and multi-channel switching, automatic test of one-time wiring;

| Informatization: PC/SRS software, local data management. MES database connection.

Medical electrical equipment(GB9706.1-2020/EC60601-1:2012)

Safety requirements for electrical equipment for measurement, control, and laboratory use(GB4793.1/EC61010-1)

Technical specifications

| Specially designed for standard test of safety of medical electrical equipment, simple, one-click completion of all tests after one-time wiring.

Multiple MDs: Standard medical electrical equipment (GB9706.1-2020/1EC60601-1:2012) MD network, up to 8 leakage MDs options, meeting various industry test standard requirements;

Multi-channel switching: Standard 8-channel ACW/DCW/IR switching. Set HV/Off for the network power supply and patientconnection. Set On/Off for PE, case, patient connection, signal I/O, display screen, keyboard, etc. Standard 1-channel GB test.

Leakage contact current: meets the requirements for test of ground leakage current (Fig. 13), contact current (Fig. 14), patient leakage current (Fig.15,16, 17, 18), and patient auxiliary current (Fig. 19).

Two shortcuts: The setting for LC test is complex. This analyzer provides manual/auto settings modes, with unique andquick operation to simplify the complexity and reduce the difficulty of operation for users.

| 6-step easy operation: 10" touchscreen, manual/auto LC test, illustrated with text.

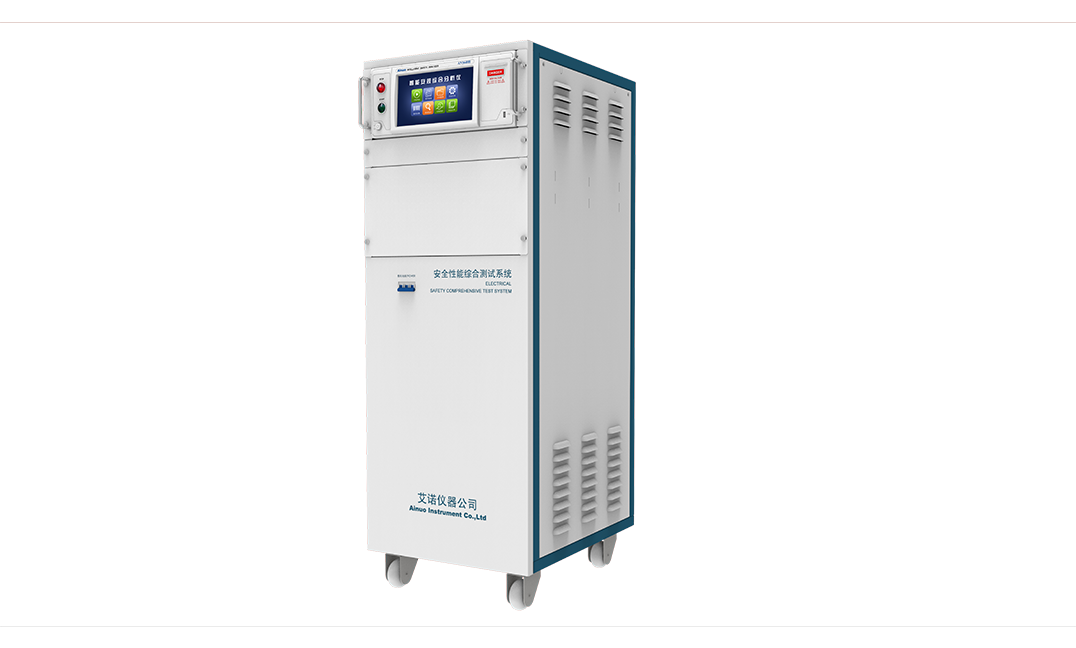

| Combination of the safety analyzer and the multi-channel switching unit, strong scalability, one-click completion of all tests after one-time wiring.
