Eight-in-one: ACW/DCW/R/GB/LC/PWIST/Loop

| High precision: 1% accuracy for safety tester, 0.2% accuracy for power

| High speed: GB and ACW/DCW/R in parallel, LC and PW in parallel

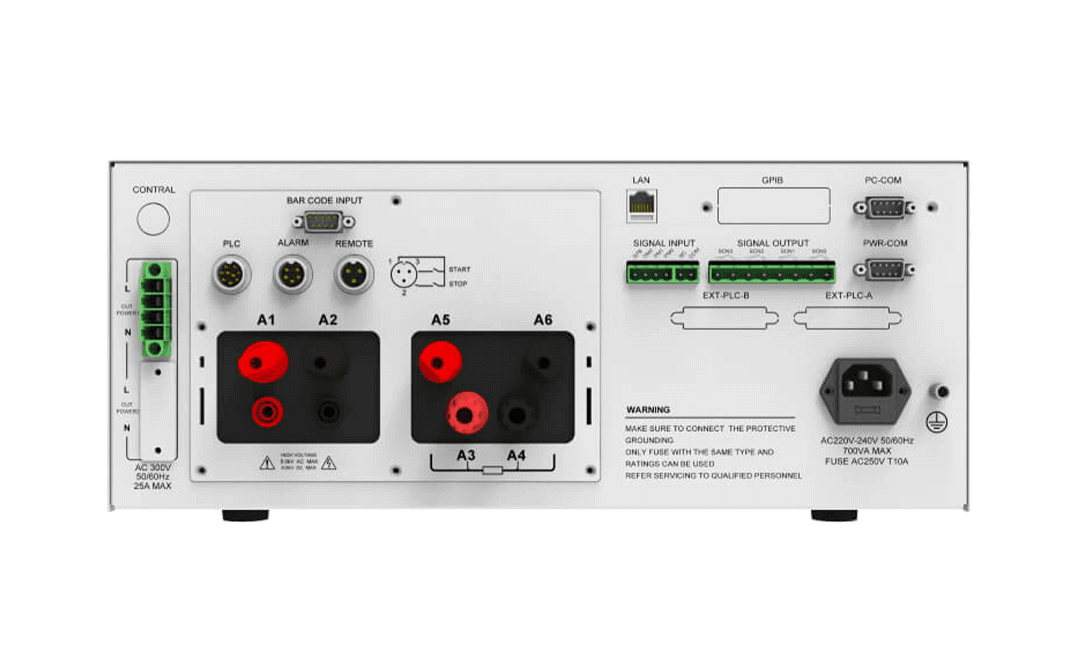

| Automation: RS232/LAN/USB/BARCODE/PLC/ALARM/REMOTE/HDMI interface

| Intelligent: Android platform, 10" touchscreen, scene recognition, intelligent matching.automatic test

Safety of household and similar electrical appliances (GB4706.1/EC60335-1)

Audio and video, information technology, and communication technology equipment (GB4943.1/1EC62368-1)

Safety requirements for electrical equipment for measurement, control, and laboratory use(GB4793.1/EC61010-1)

Luminaires (GB/T7000.1/EC60598-1)

Electric vehicle conductive charging system(GB/T18487.1)

Technical specifications

| Over 30 years of industry experience, meeting the test needs of more segmented industries and complete test of all items with just one-click and one wiring.

Multiple MDs: up to 8 MD options, covering various industry test standard requirements;

Multiple start modes: button on front panel/remote control/barcode scanner/grounding clamp.

GB and IR/ACW/DCW/ in parallel, LC and PW in parallel.

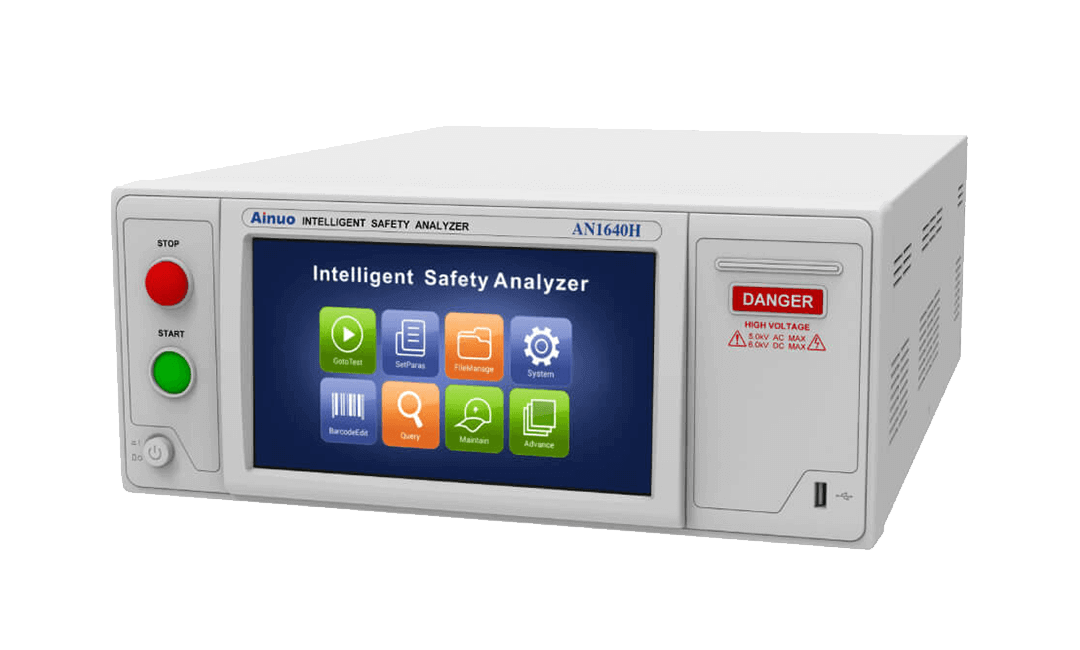

AN1640H(F) series Intelligent Safety Analyzer, with parallel GB, IR, ACW/DCW test, as well as parallel test of dynamic LC and PW parameters, significantly reducing the testing time, double the production capacity of the production line.

The AN1640H(F) Series Intelligent Safety Analyzer can build information test platform and no PC is required.

1. Support barcode scanning/barcode recognition/calling programs/startup test;

2. Local store, data filter, report generation, data export, and other functions;

3. Real-time data upload/download through LAN interface and Manufacturing Information System (MES);

4. Support HDMI LCD display and wireless keyboard/mouse, clear display, convenient.
