AN9640H(F) Efficient Electrical Safety Analyzer
Ainuo Instruments
TheAN9640H series efficient electrical safety comprehensive tester features complete functions, high reliability, and high cost-effectiveness, meeting the comprehensive safety performance testing needs for various production lines such as household appliances.
Download CatalogSeven-in-one: ACW/DCW/IR/GB/LC/PW/ST
| High precision: 1% accuracy for safety compliance analyzer, 0.2% accuracy for power
| High speed: GB and ACW/DCW/IR in parallel, fast switching, fast test
| Automation: RS232/LAN/USB/BARCODE/PLC/ALARM/REMOTE interface
| Informatization: Optional industrial PC and ESRS software for data storage and MES integration
Safety of household and similar electrical appliances (GB4706.1/IEC60335-1)
| Audio and video, information technology, and communication technology equipment (GB4943.1/IEC62368-1)
| Safety requirements for electrical equipment for measurement, control, and laboratory use (GB4793.1/IEC61010-1)
| Luminaires (GB/T7000.1/IEC60598-1)
| Electric vehicle conductive charging system (GB/T18487.1)
Technical specifications
| Model | AN9640H(F) | AN9651H(F) | AN9651H-C(F) |
| AC Withstand Voltage(ACW) | 5kVac/100mA (500VA output capacity, 200mA short-circuit current) (optional dynamic ACW) | ||
| DC Withstand Voltage(DCW) | 6kVdc/20mA | ||
| Insulation Resistance(IR) | 3kVdc/50GΩ | ||
| Ground Bond Resistance(GB) | 40Aac/600mΩ | ||
| Leakage Current(LC) | 20mA leakage current, MD-A network (lEC60990 Fig. 4, up to 8 networks), RMS measurement | ||
| Power Test(PT) | 300V/20A/6kW (optional 10kW) | ||
| Starting Test(ST) | 300V/25A | ||

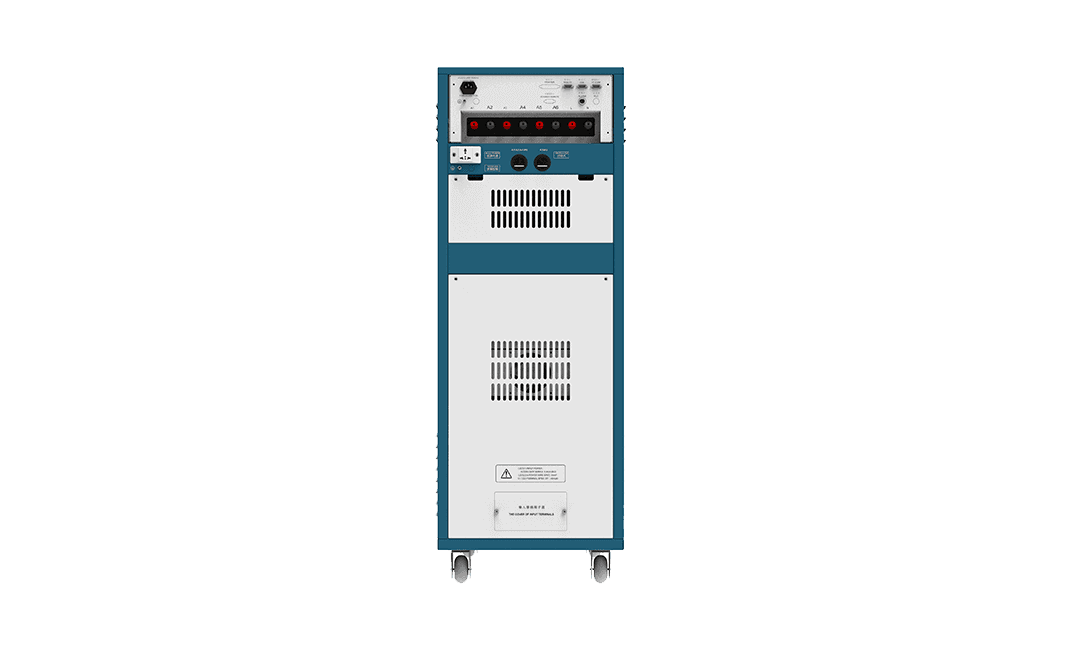

| DUT Power Supply | Extemal isolated power supply is required(optional built-in 500VA power supply) | Standard 6kVA variable frequency power supply cabinet | |
| Parallel Test | Parallel GB, IR/ACW/DCW test | ||

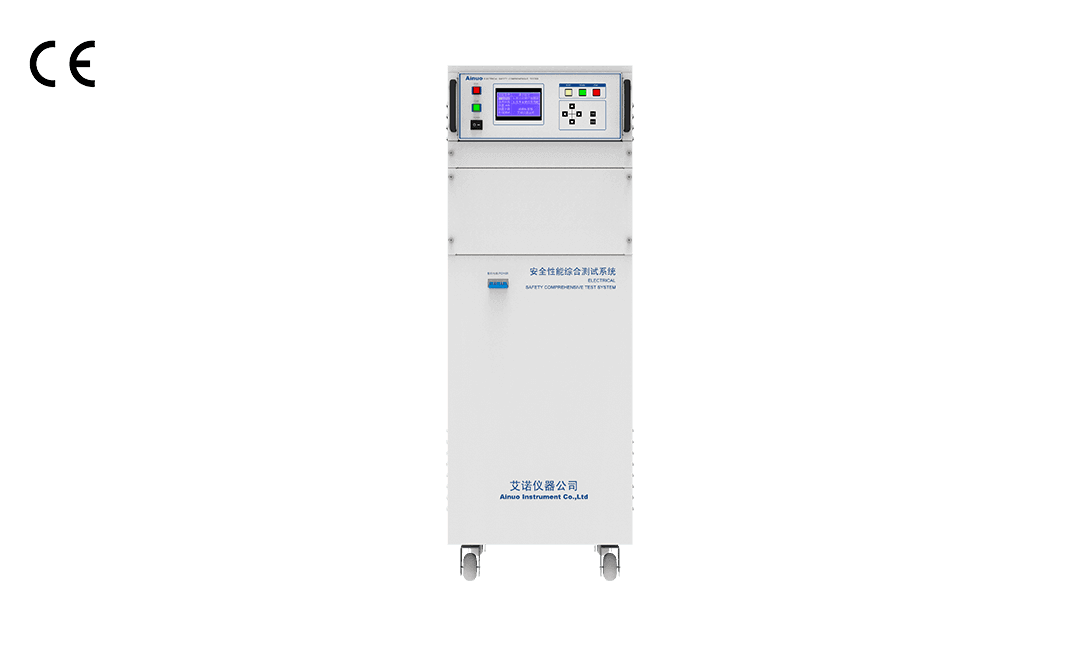

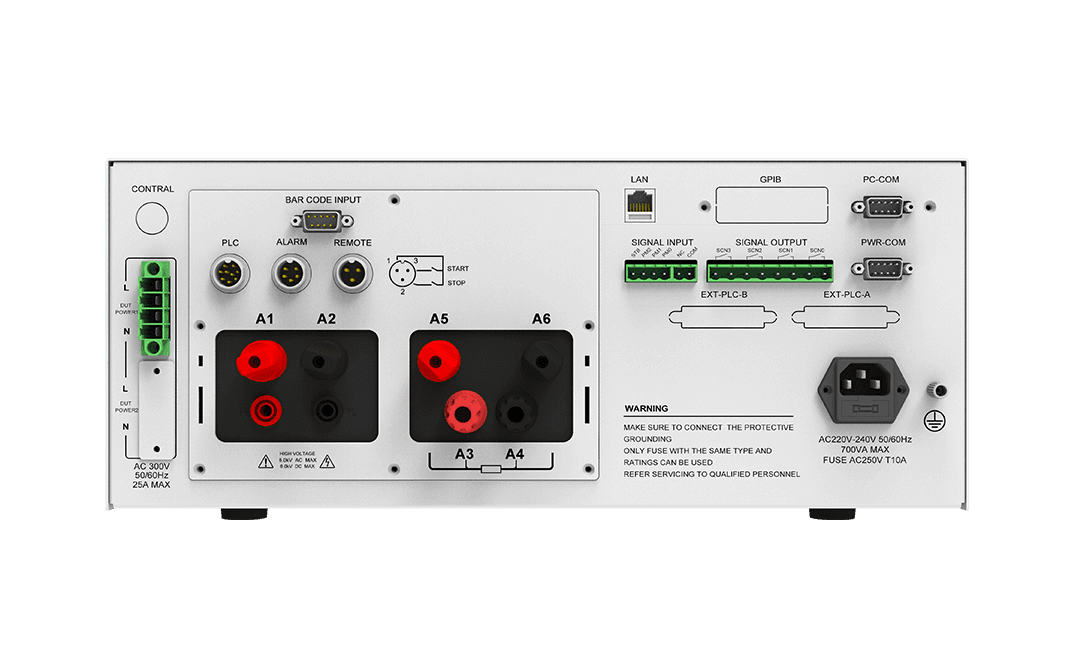

| Display Operation | LCD display, numeric keypad | PC/ESRS measurement and control system | |
| Control Interface | RS232/LAN (optional)/USB (store)/BARCODE/PLC/ALARM/REMOTE interface | ||
| Standard Accessories | Test box (3m), test clamp (3m), foot switch (2.5m), alarm lamp (0.8m), auxiliary power cable (1.9m) | ||
| Optional Accessories | Tester calibrator, barcode scanner, label printer | ||
| Dimensions(W*H*D mm) | 426*177*550 | 483*1350*600 | |
| Over 30 years of industry experience, meeting the test needs of more segmented industries andcomplete all tests with just one-click and one wiring.
Multiple start modes: button on front panel/remote control/barcode scanner/grounding clamp.
| Parallel GB, IR/ACW/DCW Test
AN9640H(F)Series Efficient Electrical Safety Comprehensive Tester.
With parallel GB, IR/ACW/DCW test.
Significantly reducing the testing time, double the production capacity of the production line.
| Build information test platform with industrial PC and ESRS measurement and control software.
This AN9651H-C(F) Series Eficient Electrical Safety Comprehensive Tester is designed with automation and information testfunctions:
(1)Barcode scanning/barcode recognition/calling programs/starting test;
(2)Local store/filter/export;
(3) Optional MES connection, active data upload, query upload, and breakpoint continuation; downloading test programs fromthe server, multiple database connection, including SQl Server,Oracle, MySQL and other database intermediate table connection, Modbus TCP connection, Web APl connection, as well as local TXT text and Access database connection.
