Multi-channel Parallel Electrical Safety Tester AN1633A(F) / AN1633B(F)Series
Ainuo Instruments
The AN1633A(F)/AN1633B(F) Series Intelligent Safety Analyzer has the characteristics of modular, 10-channel parallel, synchronous/asynchronous control, providing comprehensive and fast safety test solutions for various electronic components such as switching power supplies,inverters,transformers,relays. etc.
Application:
chargers, transformers, connectors, contactors, relays, wires and cables, switches, resistors, capacitors, etc.
Download Catalog| Three-in-one: ACW/DCW/IR test

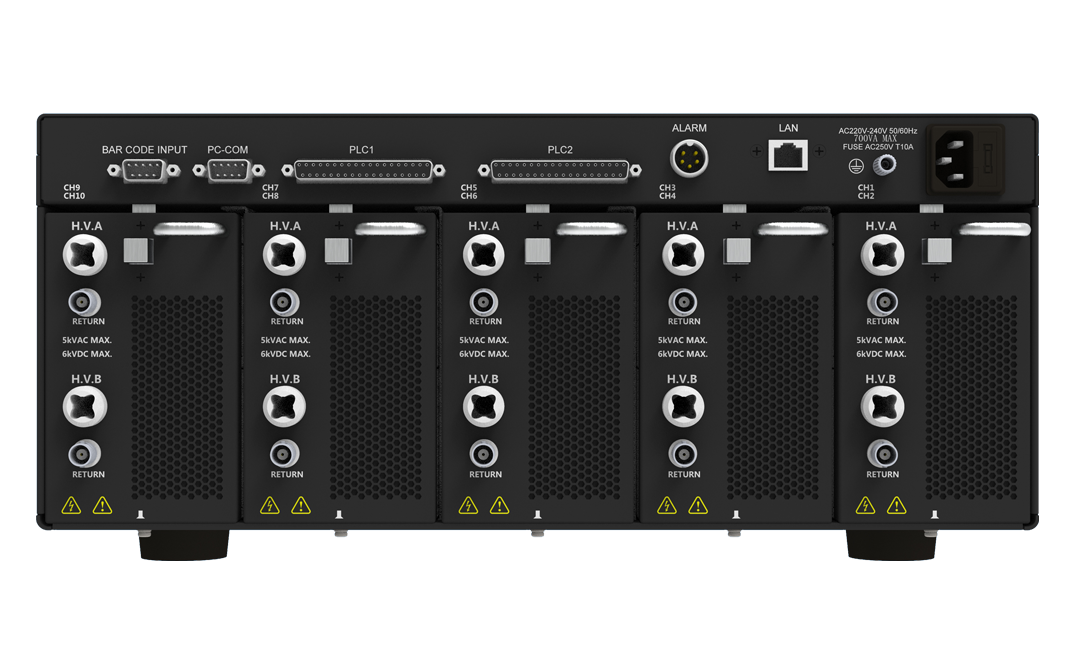

| Multi-module: built-in 1-5 independent modules,plug-and-play
| Multi-channel: 5 modules with 10 independent channels,5 modules * 3 channels for scanning
| Multiple operating conditions: synchronous/asynchronous,independent parameter settings, common loop test
| Multi-window: 10" touchscreen, independent windows for displaying results of each channel
| Audio/video, information and communication technology equipment (GB4943.1/EC62368-1)
| Multi-point ACW/DCW and common ground test scenario for a product: it can meet the needs of power supplies,inverters, transformers, new energy vehicle PDUs, and other one-time multi-point ACW/DCW and common case(PE) test applications.
| Test multiple products simultaneously: safety test of electronic components such as chargers, lithium batteries,relays, contactors, connectors, etc., parallel test of up to 10products one time.
Technical specifications
| Model/Function |
AN1633A-10(F The suffix -46810 represents the number of channels |
AN1633B-5(F) The suffix -2345 represents the number of modules |
| AC withstand Voltage (ACW) | 5kV/10mA | 5kV/20mA |
| DC withstand Voltage (DCW) | 6kV/8mA | 6kV/10mA |
| Insulation Resistance (IR) | 2.5kV/100GΩ | 2.5kV/100GΩ |
| Module Selection | 2-5 modules, with 2 independent test units per module | 2-5 modules, each module with 3-channel (H/L/X) for scanning |
| Number of Channels | 4/6/8/10 independent channels per analyzer | 6/9/12/15 scanning channels per analyzer |
| Start Mode | Synchronous/asynchronous test between channels | Synchronous/asynchronous test between modules |
| Operation Interface | 10" touch screen,RS232/PLC/LAN interface, 8G memory, MES connection | |
| Dimensions (W*H*D mm) | 462*177*640 | |
