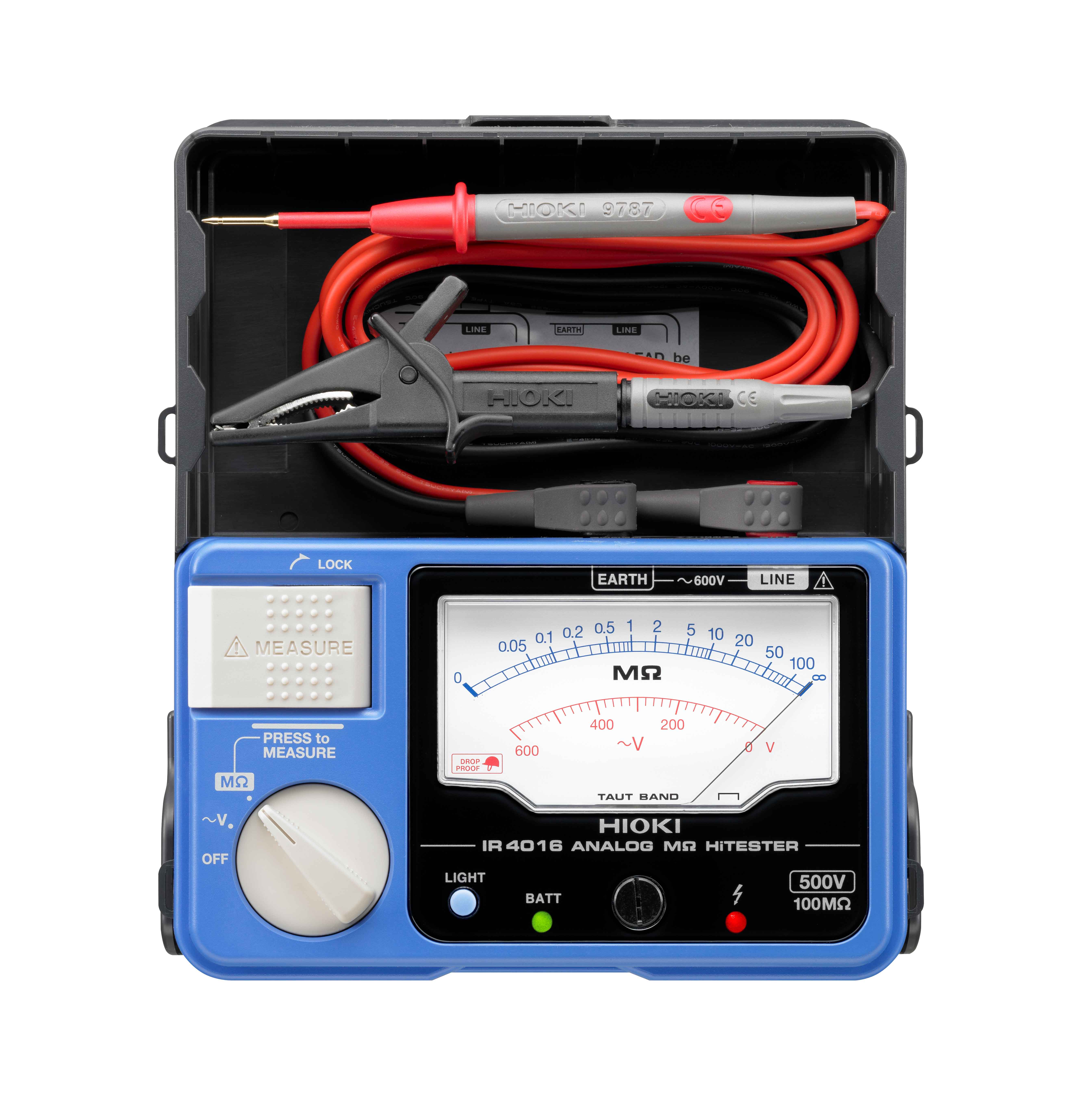

ANALOG MΩ HiTESTER IR4016

The IR4016-20 is a single-range, 500V/100MΩ analog insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing.

CAT III 600 V

Key Features

• Single range testing voltage of 500 V

• Test insulation resistance up to 100 MΩ

• Built tough to withstand a 1-meter drop onto a concrete floor

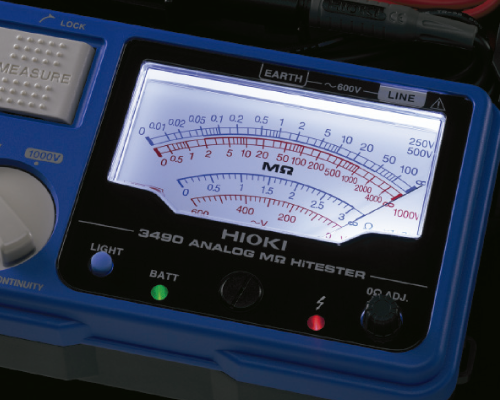

• Bright LED luminous scale

• Check for live circuits and battery status

• Integrated hard case for quick and easy storage without disconnecting the leads

ANALOG MΩ HiTESTER IR4017

The IR4017-20 is a single-range, 500V/1000MΩ analog insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing.

CAT III 600 V

Key Features

• Single range testing voltage of 500 V

• Test insulation resistance up to 1000 MΩ

• Built tough to withstand a 1-meter drop onto a concrete floor

• Bright LED luminous scale

• Check for live circuits and battery status

• Integrated hard case for quick and easy storage without disconnecting the leads

ANALOG MΩ HiTESTER IR4018

The IR4018-20 is a single-range, 1000V/2000MΩ analog insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing.

CAT III 600 V

Key Features

• Single range testing voltage of 1000 V

• Test insulation resistance up to 2000 MΩ

• Built tough to withstand a 1-meter drop onto a concrete floor

• Bright LED luminous scale

• Check for live circuits and battery status

• Integrated hard case for quick and easy storage without disconnecting the leads
