The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional to industrial to pocket meters, delivering a super fast response rate and safety features that take electrical testing to a higher level.

DIGITAL MULTIMETER DT4256

The DT4256 is a digital multimeter designed to deliver maximum functionality for use in a wide range of settings.

Key Features

• ±0.3% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics

• Measure up to 10A with direct input

• Dual display lets you check voltage and frequency simultaneously

• Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)

• USB communications function supports PC measurements (optional)

• Broad -25 (-13°F) to 65°C (149°F) operating temperature range (DT4256)

DIGITAL MULTIMETER DT4255

The DT4255 is a digital multimeter designed for maximum safety with voltage measurement terminals that are protected by a fuse.

Key Features

• Prevents short-circuit accidents with a fast-blow fuse and current-limiting resistor (DT4255)

 • Prevents accidents with clamp-on sensor-based current measurement (DT4254, DT4255)

• Voltage detection function (DT4254, DT4255)

• Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)

• Broad -25°C (-13°F) to 65°C (149°F) operating temperature range (DT4254, DT4255)

• Dual display lets you check voltage and frequency simultaneously

DIGITAL MULTIMETER DT4254

The DT4254 is a voltage measurement only model designed for measuring photovoltaic modules and other high-voltage targets up to 1700 V DC (*1). CAT IV 600 V, CAT III 1000 V

Key Features

• The voltage measurement model, which is ideal for solar power system and power equipment management, measures up to 1700 V DC (*1) during open voltage inspections (DT4254)

• Prevents accidents with clamp-on sensor-based current measurement (DT4254, DT4255)

• Voltage detection function (DT4254, DT4255)

• Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)

• Broad -25°C (-13°F) to 65°C (149°F) operating temperature range (DT4254, DT4255)

• Dual display lets you check voltage and frequency simultaneously

DIGITAL MULTIMETER DT4253

The DT4253 is a digital multimeter designed specifically for HVAC testing, with ±0.5% DC V accuracy, temperature and clamp sensor testing, and wide 40 Hz to 1kHz bandwidth. CAT IV 600 V, CAT III 1000 V

Key Features

• Ideal for measuring currents ranging from instrumentation signals (4 to 20 mA) to flame currents (μA) with built in high-sensitivity current ranges (DT4253)

• Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)

• Dual display lets you check voltage and frequency simultaneously

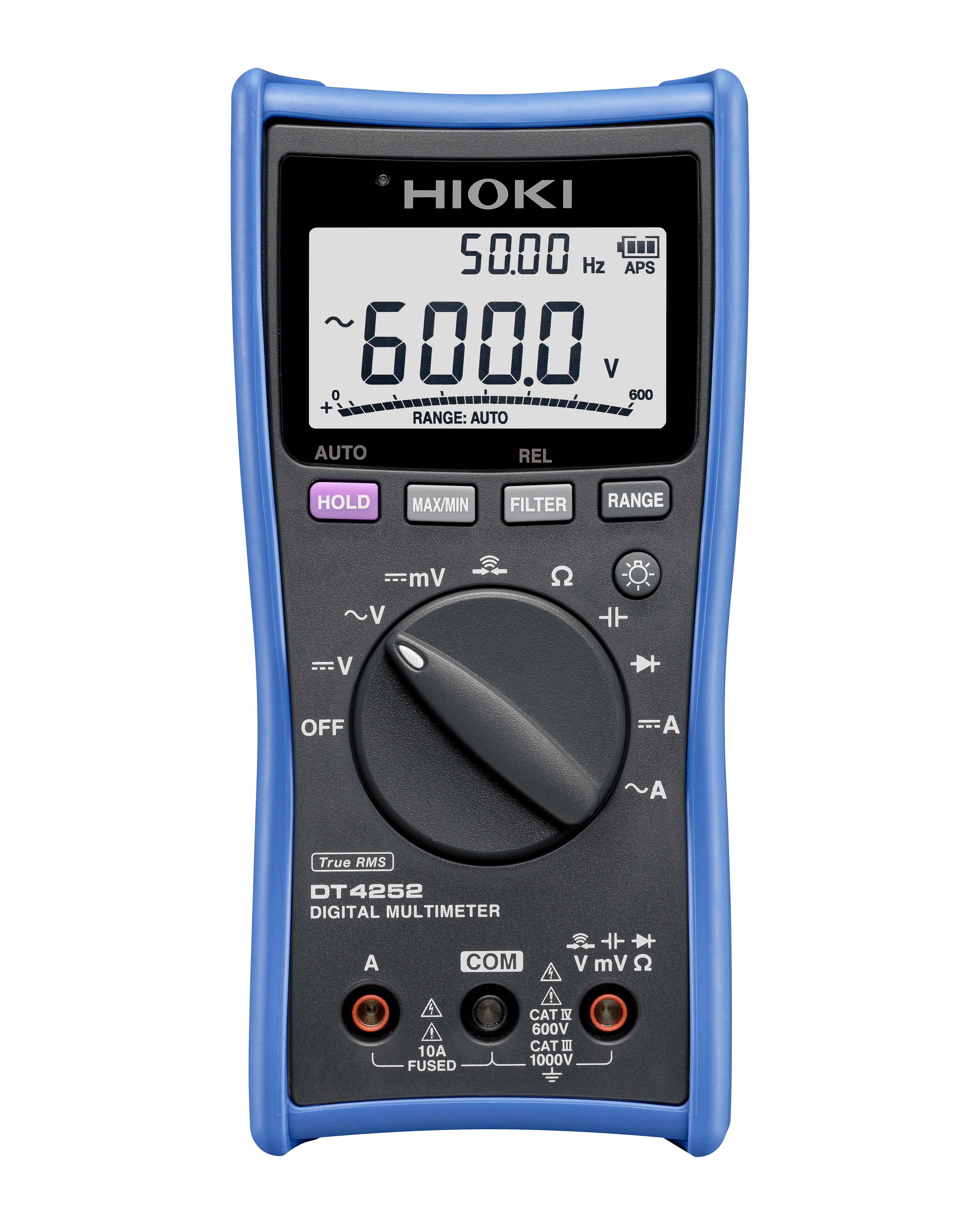

DIGITAL MULTIMETER DT4252

The DT4252 is a digital multimeter designed specifically for general purpose testing, with ±0.3% DC V accuracy, direct current input and wide 40 Hz to 1kHz bandwidth. CAT IV 600 V, CAT III 1000 V

Key Features

• ±0.3% DC V basic accuracy, wide 40 Hz to 1 kHz AC V frequency characteristics

• Measure up to 10A with direct input

• Dual display lets you check voltage and frequency simultaneously

• Low-pass filter cuts high harmonics (when measuring inverter fundamental waveforms)

• USB communications function supports PC measurements (optional)
