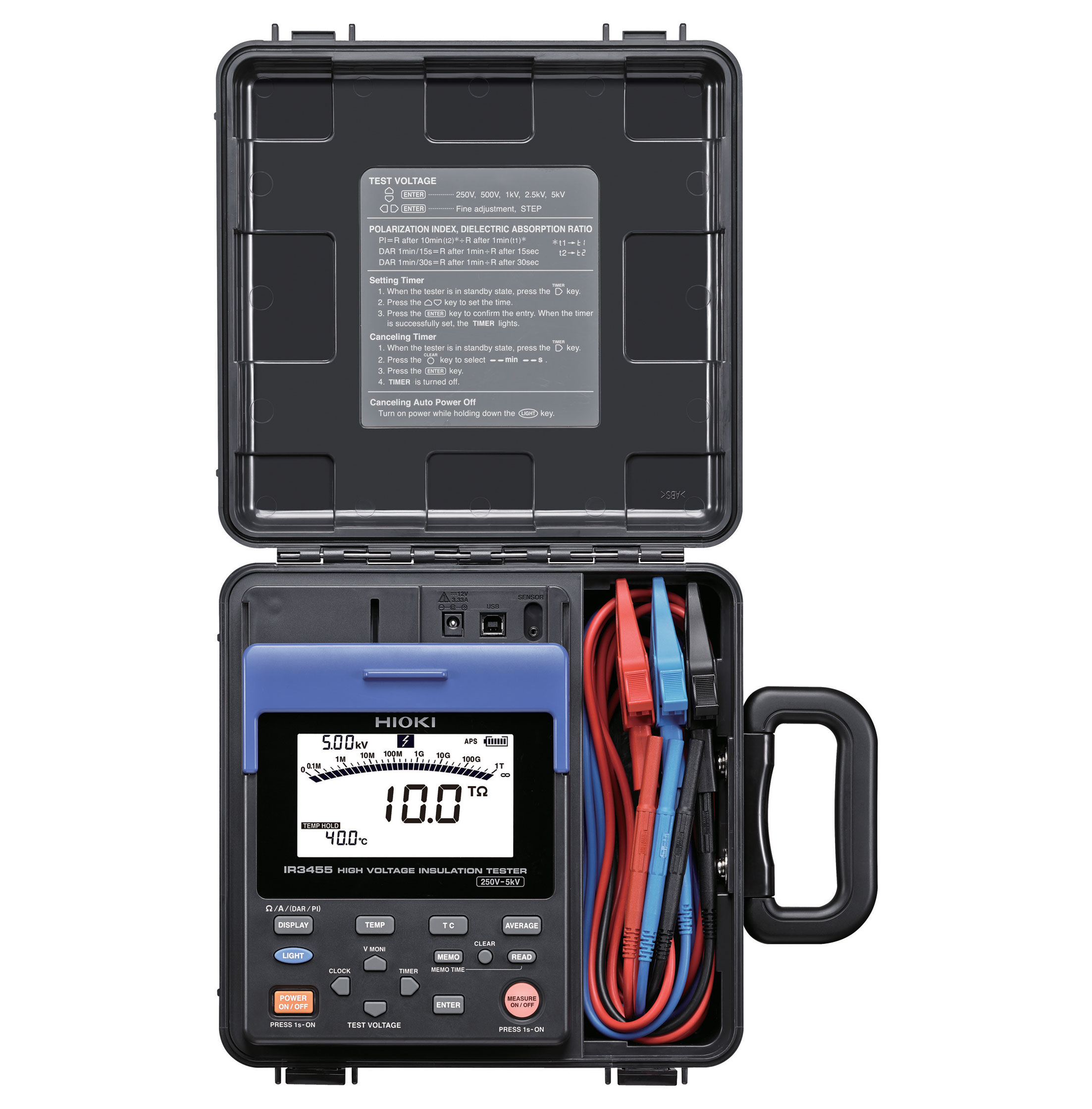

High Voltage Insulation Tester IR3455

HIOKI

Maximum 5kV Test Voltage - Up to 10 Teraohm of Insulated Resistance Testing

Download Catalog

Hioki insulation resistance testers or megohmmeters feature all-in-one designs including built-in rugged cases and test lead storage compartments. The IR3455 is a 5-range, 250V to 5000V digital insulation resistance tester offering up to 10TΩ of insulated resistance testing.  High performance features include bargraph, built-in memory, leak current and voltage testing, and DAR and PI calculation capabilities to help shorten work time associated with field insulation testing.



Key Features

• Measure insulation of high-voltage equipment (such as transformers, cables, and motors)

• Wide testing voltage range, up to 5.00 kV from 250 V DC

• Wide measurement insulation range, up to 10 TΩ

• PI (Polarization Index) and DAR (Dielectric Absorption Ratio) automatically calculated / display

• Data memory function to reduce handwritten notes

• Bright LED luminous scale

• Extended operating temperature range of -10 ? to 50 ?
