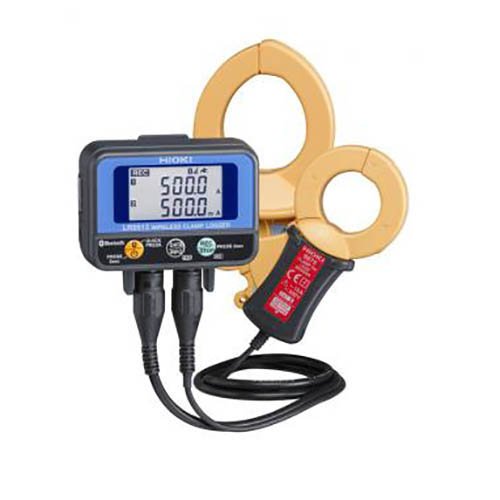

Wireless Clamp Logger LR8513

HIOKI

Measure Load Current and Leak Current Easily with Clamp Sensors

Download Catalog

Hioki Memory HiLoggers are high-speed data loggers for recording multiple channels of voltage, temperature, resistance or humidity signals, some models providing complete isolation between channels and strong noise resistance. The Hioki LR8513 is a wireless, 2-channel AC/DC current input module that utilizes Bluetooth® technology to either send measured data to the Hioki LR8410 Wireless Logging Station or to an Android (TM) tablet.



Key Features

• Measure AC and DC load current and AC leak current

• Choose from many current sensors

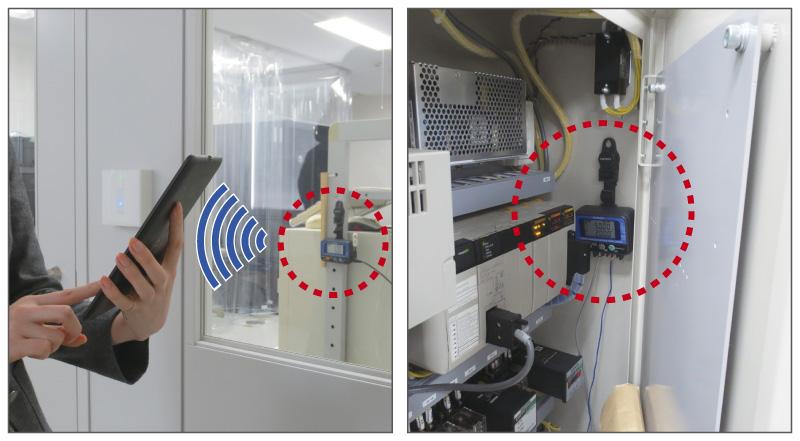

• Place inside a distribution panel, close the cover, and monitor measured values from the outside

• Measure power easily—just set the voltage and power factor

• Compact, two-channel model fits where other devices don’t

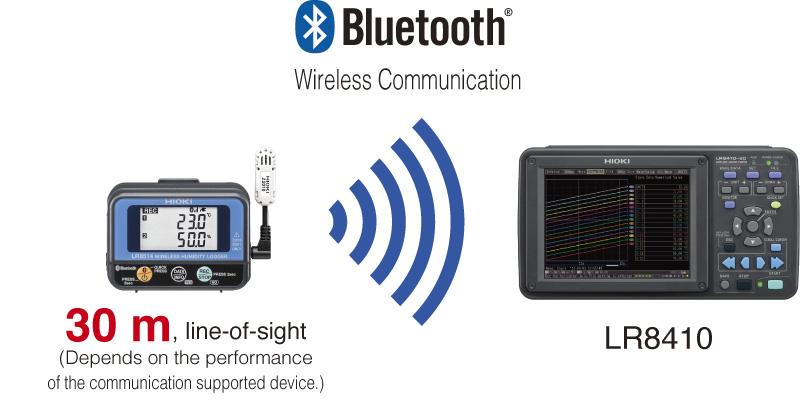

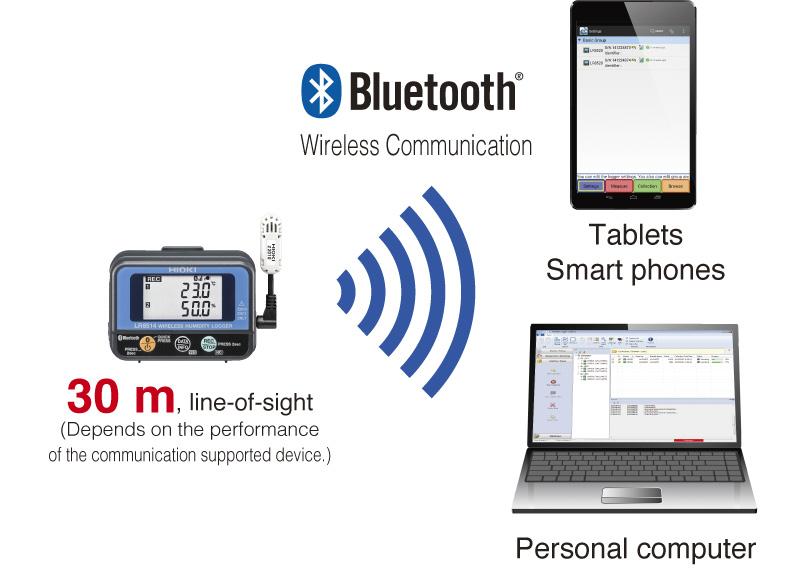

• Download measurement data to a tablet or computer with Bluetooth® wireless technology or capture in real time with the LR8410

• Three-way power (AC adapter, AA alkaline batteries, or external 5 to 13.5 V power supply)

• Store 500,000 data points per channel
